Transition Bikes Scout

The Composed Sport Bike
Hop on the Scout and you're immediately transformed into a projectile.

The Scout will awaken your inner child. Manual here, scrub that, skid there, pedal up this. Freedom to boost everything in sight, overshoot every landing without a care, mixed with nose bonking and hooting your way down the trail. Sporty, but just as eager to tackle bigger terrain. The Scout's trail charisma is infectious and will cause you to look at your regular trails through a new perspective. Pedal up and repeat.

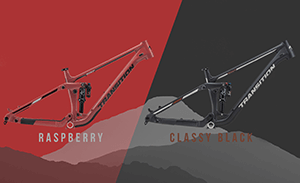

AVAILABLE COLORS:

RASPBERRY		CLASSY BLACK

SELECT BUILD

$4,099 $2,899 USD

$5,299 $3,699 USD

$2,199 $1,499 USD

SELECT SIZE/COLOR

X-Small

Out of Stock

X-Small

Out of Stock

Small

Out of Stock

Small

Out of Stock

Medium

Out of Stock

Medium

Out of Stock

Large

Ships Now

Large

Ships Now

$4,099 $2,899 USD

IN STOCK: This item will ship within 2 business days

Add To Cart

View Closeout Scout Models Here!

PRICE

$4,099 $2,899 USD

$5,299 $3,699 USD

$2,199 $1,499 USD

COLOR OPTIONS

	Classy Black
	Raspberry Red

	Classy Black
	Raspberry Red

	Classy Black
	Raspberry Red

FRAME

Scout Alloy 140mm

WHEEL SIZE

27.5"

REAR SHOCK

Fox Float X Performance
(205x57.5mm)

Fox Float X Performance Elite
(205x57.5mm)

FORK

Fox Float 36 Rhythm
(150mm)

Fox Float 36 Grip 2 Performance Elite
(150mm)

HEADSET

FSA No.57E

STEM

RaceFace Aeffect R (40mm)

ANVL Swage (40mm)

HANDLEBAR

RaceFace Chester 35
XS/SM(780x20) MD/LG(780x35)

ANVL Mandrel Alloy 35
XS/SM(800x20) MD/LG(800x30) XL (800x 40)

GRIPS

ODI Elite Flow

SADDLE

ANVL Forge Cromo

SEATPOST

OneUp Dropper Post
XS(120mm) SM(150mm) MD(180mm) LG(210mm)

BRAKES

SRAM Code R
or
SRAM Guide RE 4-Piston

TRP DH-R Evo

ROTORS

SRAM Centerline (180mm)

TRP R1 2.3 (180mm)

SHIFTER

SRAM NX Eagle MMX

SRAM GX Eagle MMX

DERAILLEUR

SRAM NX Eagle

SRAM GX Eagle

CASSETTE

SRAM PG 1230 (11-50t)

SRAM XG 1275 (10-52t)

CHAIN

SRAM NX Eagle

SRAM GX Eagle

CRANK

SRAM Descendent 6k DUB
(XS 32t/165mm)
(SM/MD/LG 32t/170mm)

SRAM GX Eagle DUB
(XS 32t/165mm)
(SM/MD/LG 32t/170mm)

RIMS

Stans Flow D

DT Swiss M 1900 Spline 30

SPOKES

Pillar Double Butted

DT Swiss Champion

HUBS

Novatech D791SB/D902SB

DT Swiss 370 Ratchet LN

TIRE/FRONT

Maxxis Assegai 3C EXO+ (2.5)

TIRE/REAR

Maxxis Minion DHRII 3C EXO+ (2.4)

INCLUDED

Tubeless Valves & Sealant

WEIGHT

34.9 lbs / 15.83 kg (Size MD)

33.4 lbs / 15.15 kg (Size MD)

9.5 lbs / 4.31 kg (Size MD w/shock)

Specs are subject to change at any time. All complete bikes are 95% assembled and packaged for quick and easy final assembly, and as such, Transition Bikes is not able to make special request build spec changes or modifications to packaging.

FRAME FEATURES

1. Lifetime Warranty
At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner and our stellar crash replacement program. We got your back so you don't have to worry about your bike.

2. Frame Material
The Scout carbon uses premium Japanese Toray fiber using a unique latex coated EPS molding process to create tighter edge radius control using less material. The Scout alloy features a frame made from tough and dependable heat treated 6061 aluminum to strike the right balance of strength, durability and ride quality.

3. Pivot Technology
Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent main pivot bearing contamination when washing your bike or riding in wet conditions.

4. Frame Protection
We keep your bike rides quiet and your frame safe from damage with fully integrated, flush-mounted rubber frame protection at all critical areas. In addition to downtube and seatstay protection, the ribbed chainstay protector features expanded coverage of the rear dropout pivot area.

5. Enduro Max Bearings
We exclusively use Enduro Max suspension pivot specific bearings in standard sizes that are readily available worldwide. Dual bearings are used at the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under torsional loads.

6. Gear Accessory Mount
Our underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch the backpack.

7. Mega Seatpost Insertion
Dropper posts keep getting longer so we combine short seat tube lengths with mega seatpost insertion to help get your saddle completely out of the way.

8. Tire Clearance
Ample clearance for mud and tires up to 2.6" width.

9. User Friendly Cable Routing
To simplify maintenance and keep your bike noise free, the rear derailleur cable is routed through guide tubes in the front triangle and chainstay.

Feature available on carbon framesets only.

10. Threaded BB
A standard 73mm threaded bottom bracket shell makes crankset maintenance hassle-free and prevents unwanted press-fit BB related noises.

11. Press In Headset
Our ZS44/ZS56 press in headset gives you the freedom to use angle adjust headsets if you feel the need to make your bike a touch slacker or a touch steeper.

Angleset headset does not come with framesets or complete bikes.

12. Water Bottle Compatibility
We keep your water bottle clean inside the front triangle so you can keep hydrated without worrying about mud making it to your mouth.

1. Lifetime Warranty

At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner and our stellar crash replacement program. We got your back so you don't have to worry about your bike.

2. Frame Material

The Scout carbon uses premium Japanese Toray fiber using a unique latex coated EPS molding process to create tighter edge radius control using less material. The Scout alloy features a frame made from tough and dependable heat treated 6061 aluminum to strike the right balance of strength, durability and ride quality.

3. Pivot Technology

Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent main pivot bearing contamination when washing your bike or riding in wet conditions.

4. Frame Protection

We keep your bike rides quiet and your frame safe from damage with fully integrated, flush-mounted rubber frame protection at all critical areas. In addition to downtube and seatstay protection, the ribbed chainstay protector features expanded coverage of the rear dropout pivot area.

5. Enduro Max Bearings

We exclusively use Enduro Max suspension pivot specific bearings in standard sizes that are readily available worldwide. Dual bearings are used at the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under torsional loads.

6. Gear Accessory Mount

Our underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch the backpack.

7. Mega Seatpost Insertion

Dropper posts keep getting longer so we combine short seat tube lengths with mega seatpost insertion to help get your saddle completely out of the way.

8. Tire Clearance

Ample clearance for mud and tires up to 2.6" width.

9. User Friendly Cable Routing

To simplify maintenance and keep your bike noise free, the rear derailleur cable is routed through guide tubes in the front triangle and chainstay.

Feature available on carbon framesets only.

10. Threaded BB

A standard 73mm threaded bottom bracket shell makes crankset maintenance hassle-free and prevents unwanted press-fit BB related noises.

11. Press In Headset

Our ZS44/ZS56 press in headset gives you the freedom to use angle adjust headsets if you feel the need to make your bike a touch slacker or a touch steeper.

Angleset headset does not come with framesets or complete bikes.

12. Water Bottle Compatibility

We keep your water bottle clean inside the front triangle so you can keep hydrated without worrying about mud making it to your mouth.

Speed Balanced Geometry SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
	XS	SM	MD	LG	XL

A. REACH	410	435	460	485	510

B. STACK	577	590	604	617	631

C. EFFECTIVE TT LENGTH	534	564	593	623	652

D. SEAT TUBE LENGTH	350	360	390	430	460

E. EFFECTIVE ST ANGLE	78.2°	77.7°	77.2°	76.8°	76.4°

SADDLE HEIGHT FOR EFFECTIVE ST ANGLE	560	600	660	720	780

ACTUAL ST ANGLE	72°	72°	72°	72°	72°

SEAT TUBE OFFSET AT BB	63	63	63	63	63

F. HEAD TUBE LENGTH	95	110	125	140	155

G. HEAD TUBE ANGLE	64.0°	64.0°	64.0°	64.0°	64.0°

H. CHAINSTAY LENGTH	430	430	430	430	430

I. WHEELBASE	1153	1185	1217	1248	1280

J. BOTTOM BRACKET DROP	18	18	18	18	18

K. ESTIMATED BB HEIGHT	337	337	337	337	337

L. STAND OVER HEIGHT	665	665	673	686	698

M. FORK OFFSET	37	37	37	37	37

GIDDYUP

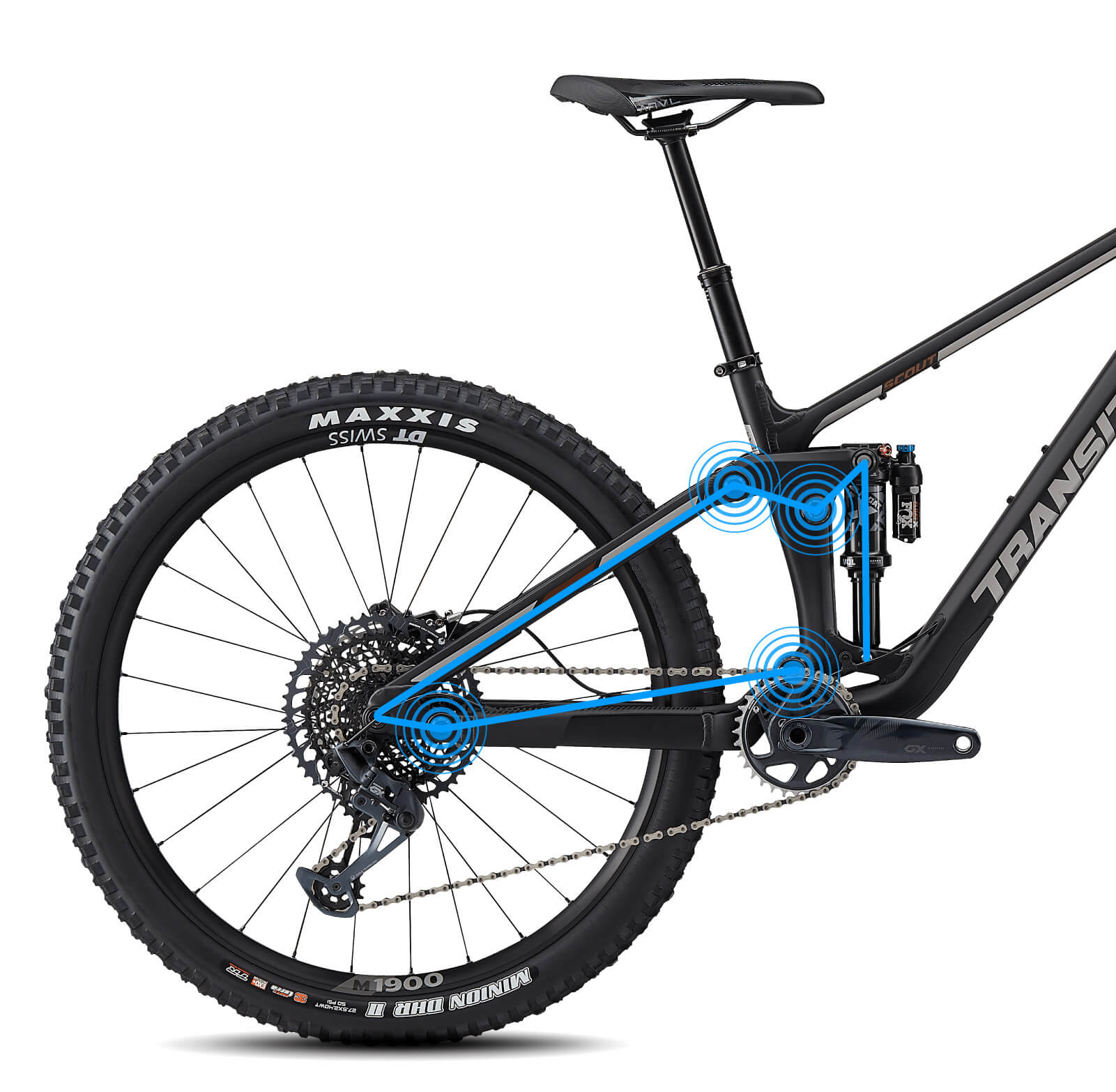

SUSPENSION
DESIGN

We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.

We did this by balancing a 24% progressive leverage curve with a consistent linear rate of change. Anti-squat is tuned to enhance pedaling performance and acceleration. Overall chain growth is moderate and reduces after sag so chain tension doesn't get in the way of the suspension working.

This translates to killer small bump compliance and great mid-stroke support that gradually transitions into an end of stroke ramp that is subtle, yet supportive. The amount of consistent progression is carefully optimized for both air and coil shocks. Riders are able to add or remove volume spacers in air shocks to suite their individual riding style and there is no compromise to bottom out support with coil shocks. The Scout has 140mm of rear wheel travel when used with the supplied 205mm x 57.5mm stroke shock. It is also possible to install a longer, 205mm x 62.5mm stroke shock, to increase the rear wheel travel to 150mm.

A wide usable sag range of 25 - 35% allows the rider to tune the feel of the bike; from poppy and playful, to planted for plowing. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.

"The sleek, highly-refined carbon frame is eye-catching, to say the least. Stare too long at those forms and you would be forgiven in missing the tweaked geometry and increased travel numbers. Throw a leg over the new Scout and all becomes clear. The 2020 Transition Scout doesn't just party, it parties harder.

With a bike that is incredibly fun on the trail and immensely confident in the rough stuff, we have to tip our hat to the gang at Transition. In a market rife with "updates" that are little more than marketing hype, the band from Bellingham have rebuilt the Scout in a meaningful way and produced a stellar bike that we cannot wait to ride every time we walk to the garage." - VitalMTB - FULL REVIEW HERE

"The new carbon Scout is for riders who are looking for a versatile and capable 27.5" bike that's all about delivering an extra-fun time on the trails. It ticks the nimble and playful boxes, and it's a bike that I truly enjoy riding in a variety of conditions. As an ode to the Bottlerocket, the Scout delivers and then some." - Pinkbike.com - FULL REVIEW HERE

"The mid-travel, medium wheeled bike begs to flicked about during loose descents, and seems not to mind the pedal back up in the slightest, so hats off to the Scout for reminding us why we love mountain biking." - MTB-MAG.com - FULL REVIEW HERE

"The low, aggressively poised dimensions on the Scout gave me the feeling that I could attack and pick up speed on long descents, and as soon as I wanted to turn anything into a kicker or a jump, it was also ready." - singletracks.com - FULL REVIEW HERE

Frame Specifications

REAR TRAVEL:	140mm (Compatible with 150mm)

FRONT TRAVEL:	150mm

WHEEL SIZE:	27.5"

SIZES:	Carbon: XS, SM, MD, LG, XL Alloy: XS, SM, MD, LG

COLORS:	Carbon: Midnight Blue, Olive Green Alloy: Classy Black, Raspberry Red

FRAME BEARINGS:	2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900

FORK AXLE TO CROWN:	545mm

FORK OFFSET:	37mm

REAR SHOCK SIZE:	205mm x 57.5mm (Compatible with a 205mm x 62.5mm shock)

SHOCK HARDWARE:	Trunnion Mount Top / 25mm x 8mm Bottom

HEADSET (TOP):	44mm Zero Stack

HEADSET (BOTTOM):	56mm Zero Stack

BB SHELL:	73mm BSA Threaded

CHAINLINE:	52mm

REAR BRAKE MOUNT:	180mm Post Mount

REAR AXLE:	Carbon: Syntace X12 148, with a 1.0mm thread pitch Alloy: Transition Axle For UDH, 12mm x 148mm Spacing

ISCG TABS:	ISCG05

SEATPOST DIAMETER:	31.6mm

SEAT CLAMP:	Carbon: 37.0mm Alloy: 34.9mm

MAX SEATPOST INSERTION:	Carbon: XS 210mm \| Small 220mm \| Medium 250mm \| Large 290mm \| XL 320mm Alloy: XS 230mm \| Small 240mm \| Medium 270mm \| Large 310mm

MAX CHAINRING SIZE:	34T Single Ring

MAX TIRE SIZE:	27.5 x 2.6

REAR SHOCK SAG:	140mm/57.5mm: 15-19mm (26-33%) 150mm/62.5mm: 16-20mm (26-32%)
