PRICE | $6699 USD | $5499 USD | $5499 USD | $4499 USD | $3199 USD |
FRAME | Scout Carbon 140mm | Scout Carbon 140mm | Scout Carbon 140mm | Scout Carbon 140mm | Scout Carbon 140mm |
REAR SHOCK | Fox Float X2 Factory 2 Position | RockShox Super Deluxe Ultimate | Fox Float X2 Performance 2 Position | RockShox Super Deluxe Select+ | Fox Float X2 Factory 2 Position |
FORK | Fox Float 36 Grip 2 Factory 150mm Travel/37mm Offset |
RockShox Lyrik Ultimate 150mm Travel/37mm Offset |
Fox Float 36 Grip Performance 150mm Travel/37mm Offset |
RockShox Lyrik Select 150mm Travel/37mm Offset |
|
HEADSET | Cane Creek 40 Series | FSA No.57E | FSA No.57E | FSA No.57E | |
STEM | ANVL Swage (40mm) | ANVL Swage (40mm) | ANVL Swage (40mm) | RaceFace Aeffect R (40mm) | |
HANDLEBAR | OneUp Carbon Bar XS/SM (800x20) MD/LG/XL (800x35) |
ANVL Mandrel Alloy 35 XS/SM (800x20) MD/LG (800x30) XL (800x40) |
ANVL Mandrel Alloy 35 XS/SM (800x20) MD/LG (800x30) XL (800x40) |
RaceFace Chester 35 XS/SM (780x20) MD/LG/XL (780x35) |
|
GRIPS | Sensus Lite | Sensus Lite | Sensus Lite | Sensus Lite | |
SADDLE | ANVL Forge Ti | ANVL Forge Cromo | ANVL Forge Cromo | ANVL Forge Cromo | |
SEATPOST | OneUp Dropper Post XS (120mm) SM (150mm) MD (180mm) LG/XL (210mm) |
OneUp Dropper Post XS (120mm) SM (150mm) MD (180mm) LG/XL (210mm) |
OneUp Dropper Post XS (120mm) SM (150mm) MD (180mm) LG/XL (210mm) |
OneUp Dropper Post XS (120mm) SM (150mm) MD (180mm) LG/XL (210mm) |
|
BRAKES | SRAM Code RSC | SRAM Code RSC | Shimano XT M8120 | SRAM Code R | |
ROTORS | SRAM Centerline (180mm) | SRAM Centerline (180mm) | Shimano RT86 (180mm) | SRAM Centerline (180mm) | |
SHIFTER | SRAM XO1 Eagle | SRAM GX Eagle | Shimano XT M8100 | SRAM NX Eagle MMX | |
DERAILLEUR | SRAM XO1 Eagle | SRAM GX Eagle | Shimano XT M8100 | SRAM NX Eagle | |
CASSETTE | SRAM XG 1295 (10-52t) | SRAM XG 1275 (10-52t) | Shimano SLX M7100 (10-51t) | SRAM PG 1230 (11-50t) | |
CHAIN | SRAM GX Eagle | SRAM GX Eagle | Shimano XT M8100 | SRAM NX Eagle | |
CRANK | SRAM X1 Carbon DUB (XS 32t/165mm, SM-XL 32t/170mm) | SRAM Stylo 7K DUB (XS 32t/165mm, SM-XL 32t/170mm) | Shimano XT M8100 (XS 32t/165mm, SM-XL 32t/170mm) | SRAM Stylo 6k DUB (XS 32t/165mm, SM-XL 32t/170mm) | |
RIMS | DT Swiss XM 1700 Spline 30 | Stans Flow S1 | Stans Flow S1 | Stans Flow D | |
SPOKES | DT Swiss Competition | Sapim Race Double Butted | Sapim Race Double Butted | Pillar Double Butted | |
HUBS | DT Swiss 350 Straight Pull 36SL | Stans Neo Durasync | Stans Neo Durasync | Novatech D791SB/D462SB | |
TIRE/FRONT | Maxxis Assegai 3C EXO+ (27.5x2.5) | Maxxis Assegai 3C EXO+ (27.5x2.5) | Maxxis Assegai 3C EXO+ (27.5x2.5) | Maxxis Assegai 3C EXO+ (27.5x2.5) | |
TIRE/REAR | Maxxis Minion DHRII 3C EXO+ (27.5x2.4) | Maxxis Minion DHRII 3C EXO+ (27.5x2.4) | Maxxis Minion DHRII 3C EXO+ (27.5x2.4) | Maxxis Minion DHRII 3C EXO+ (27.5x2.4) | |
INCLUDED | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Stans Sealant (6oz) | |
WEIGHT | 30.4 lbs / 13.79kg (Size MD) | 31 lbs / 14.06kg (Size MD) | 31 lbs / 14.06kg (Size MD) | 31.5 lbs / 14.29kg (Size MD) | 7.05 lbs / 3.20kg (Size MD w/shock) |
Specs are subject to change at any time. |
![]() |
![]() |
Speed Balanced Geometry SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider. ![]() ![]() |
||||||
![]() |
XS | SM | MD | LG | XL | ![]() |
|
![]() |
![]() | ||||||
![]() |
A. REACH | 410 | 435 | 460 | 485 | 510 | |
![]() |
![]() |
||||||
![]() |
B. STACK | 577 | 590 | 604 | 617 | 631 | |
![]() |
![]() |
||||||
![]() |
C. EFFECTIVE TT LENGTH | 534 | 564 | 593 | 623 | 652 | |
![]() |
![]() |
||||||
![]() |
D. SEAT TUBE LENGTH | 350 | 360 | 390 | 430 | 460 | |
![]() |
![]() |
||||||
![]() |
E. EFFECTIVE ST ANGLE | 78.2° | 77.7° | 77.2° | 76.8° | 76.4° | |
![]() |
![]() |
||||||
![]() |
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 560 | 600 | 660 | 720 | 780 | |
![]() |
![]() |
||||||
![]() |
ACTUAL ST ANGLE | 72° | 72° | 72° | 72° | 72° | |
![]() |
![]() |
||||||
![]() |
SEAT TUBE OFFSET AT BB | 63 | 63 | 63 | 63 | 63 | |
![]() |
![]() |
||||||
![]() |
F. HEAD TUBE LENGTH | 95 | 110 | 125 | 140 | 155 | |
![]() |
![]() |
||||||
![]() |
G. HEAD TUBE ANGLE | 64.0° | 64.0° | 64.0° | 64.0° | 64.0° | |
![]() |
![]() |
||||||
![]() |
H. CHAINSTAY LENGTH | 430 | 430 | 430 | 430 | 430 | |
![]() |
![]() |
||||||
![]() |
I. WHEELBASE | 1153 | 1185 | 1217 | 1248 | 1280 | |
![]() |
![]() |
||||||
![]() |
J. BOTTOM BRACKET DROP | 18 | 18 | 18 | 18 | 18 | |
![]() |
![]() |
||||||
![]() |
K. ESTIMATED BB HEIGHT | 337 | 337 | 337 | 337 | 337 | |
![]() |
![]() |
||||||
![]() |
L. STAND OVER HEIGHT | 665 | 665 | 673 | 686 | 698 | |
![]() |
![]() |
||||||
![]() |
M. FORK OFFSET | 37 | 37 | 37 | 37 | 37 | |
![]() |
![]() |
||||||
![]() |
![]() |
![]() |

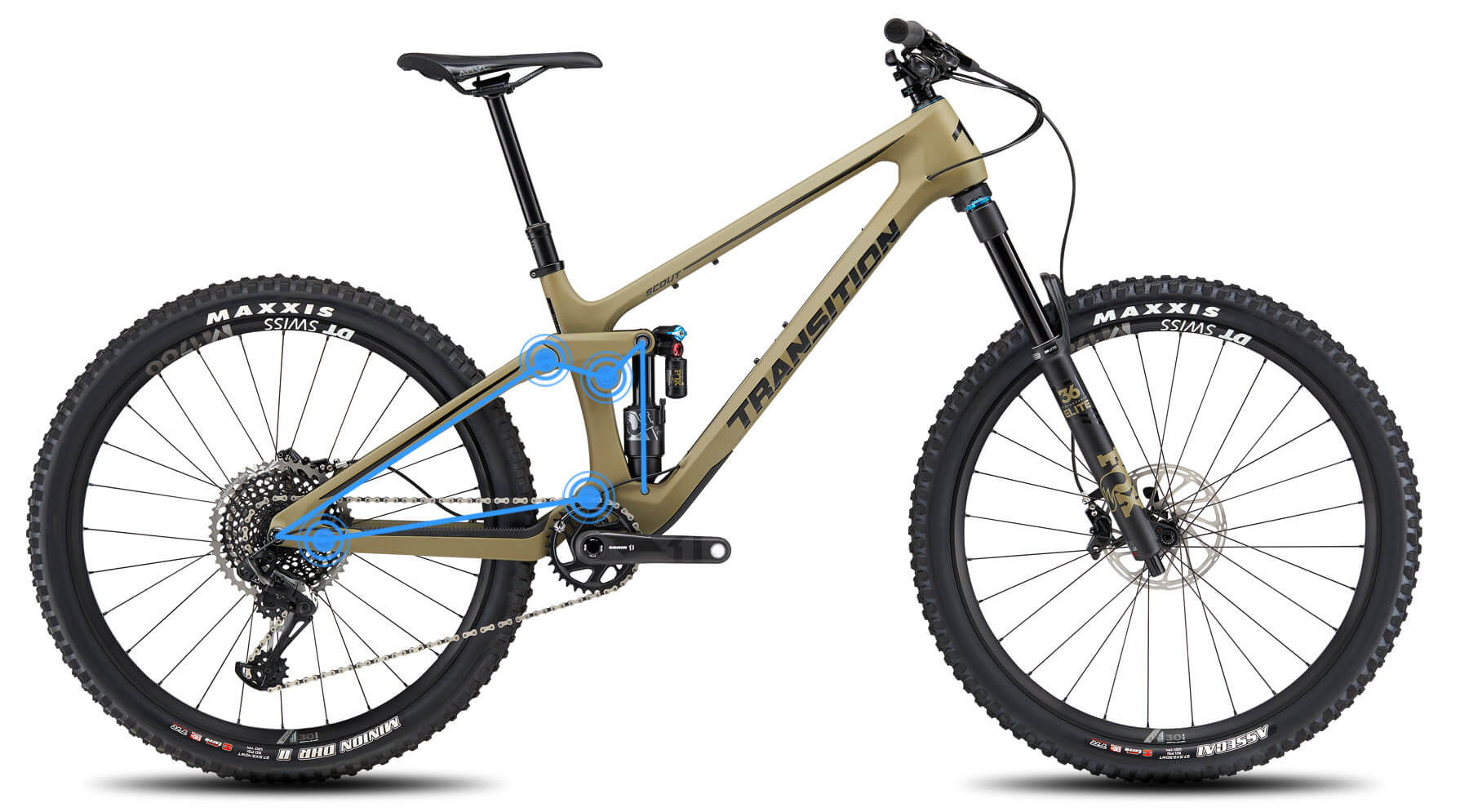

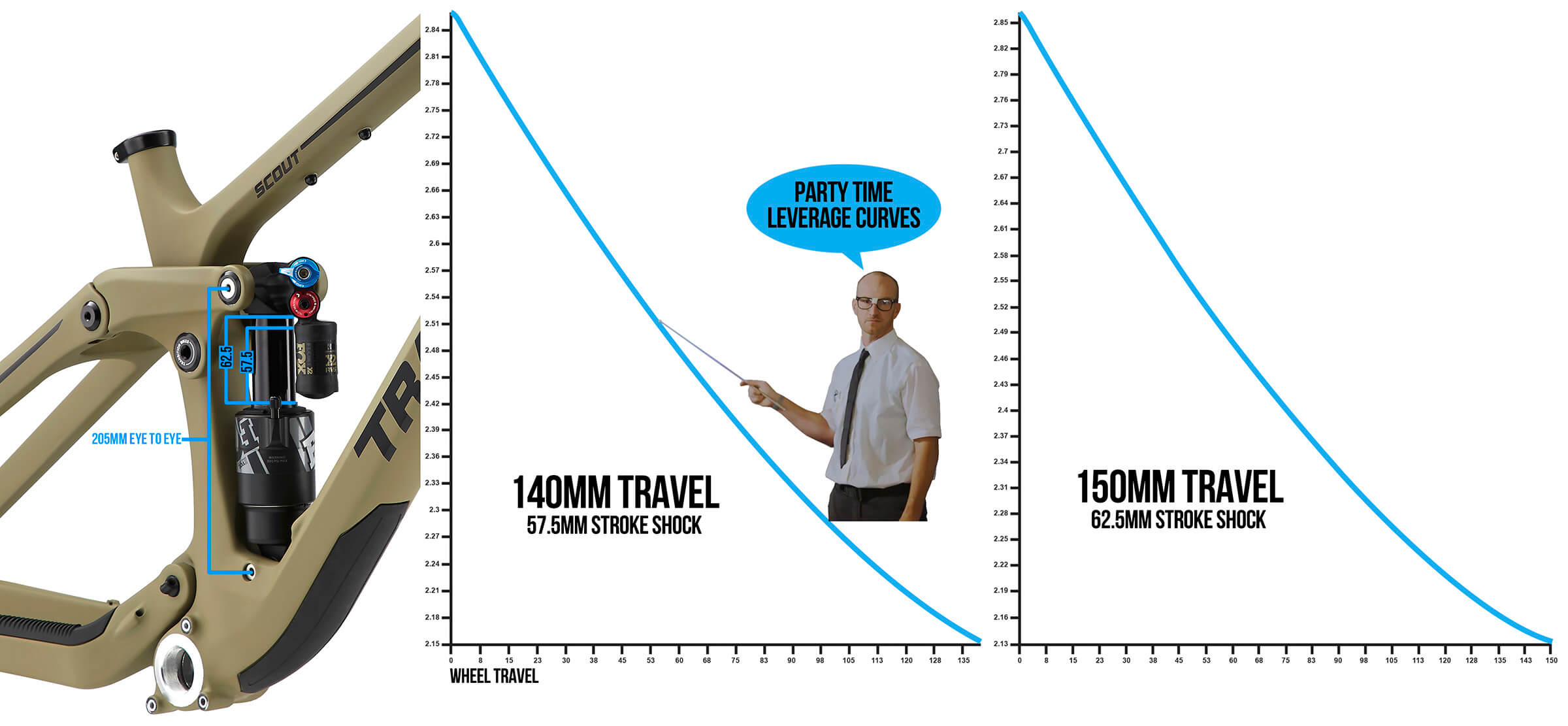

GIDDYUP SUSPENSION DESIGN ![]() We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good. ![]() This translates to killer small bump compliance and great mid-stroke support that gradually transitions into an end of stroke ramp that is subtle, yet supportive. The amount of consistent progression is carefully optimized for both air and coil shocks. Riders are able to add or remove volume spacers in air shocks to suite their individual riding style and there is no compromise to bottom out support with coil shocks. The Scout has 140mm of rear wheel travel when used with the supplied 205mm x 57.5mm stroke shock. It is also possible to install a longer, 205mm x 62.5mm stroke shock, to increase the rear wheel travel to 150mm. A wide usable sag range of 25 - 35% allows the rider to tune the feel of the bike; from poppy and playful, to planted for plowing. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp. | ![]() |
![]() ![]() |
REAR TRAVEL: | 140mm (Compatible with 150mm) |
![]() |
|
FRONT TRAVEL: | 150mm |
![]() |
|
WHEEL SIZE: | 27.5" |
![]() |
|
SIZES: | XS, SM, MD, LG, XL |
![]() |
|
COLORS: | Midnight Blue, Olive Green |
![]() |
|
FRAME BEARINGS: | 2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900 |
![]() |
|
FORK AXLE TO CROWN: | 545mm |
![]() |
|
FORK OFFSET: | 37mm |
![]() |
|
REAR SHOCK SIZE: | 205mm x 57.5mm (Compatible with a 205mm x 62.5mm shock) |
![]() |
|
SHOCK HARDWARE: | Trunnion Mount Top / 25mm x 8mm Bottom |
![]() |
|
HEADSET (TOP): | 44mm Zero Stack |
![]() |
|
HEADSET (BOTTOM): | 56mm Zero Stack |
![]() |
|
BB SHELL: | 73mm BSA Threaded |
![]() |
|
CHAINLINE: | 52mm |
![]() |
|
REAR BRAKE MOUNT: | 180mm Post Mount |
![]() |
|
REAR AXLE: | Syntace X12 148, with a 1.0mm thread pitch |
![]() |
|
ISCG TABS: | ISCG05 |
![]() |
|
SEATPOST DIAMETER: | 31.6mm |
![]() |
|
SEAT CLAMP: | 37.0mm |
![]() |
|
MAX SEATPOST INSERTION: | XS 210mm | Small 220mm | Medium 250mm | Large 290mm | XL 320mm |
![]() |
|
MAX CHAINRING SIZE: | 34T Single Ring |
![]() |
|
MAX TIRE SIZE: | 27.5 x 2.6 |
![]() |
|
REAR SHOCK SAG: | 140mm/57.5mm: 15-19mm (26-33%) 150mm/62.5mm: 16-20mm (26-32%) |
