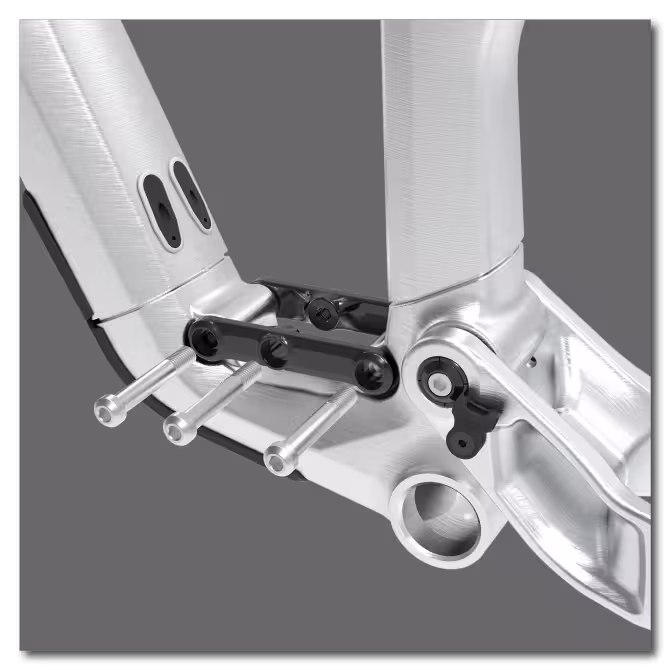

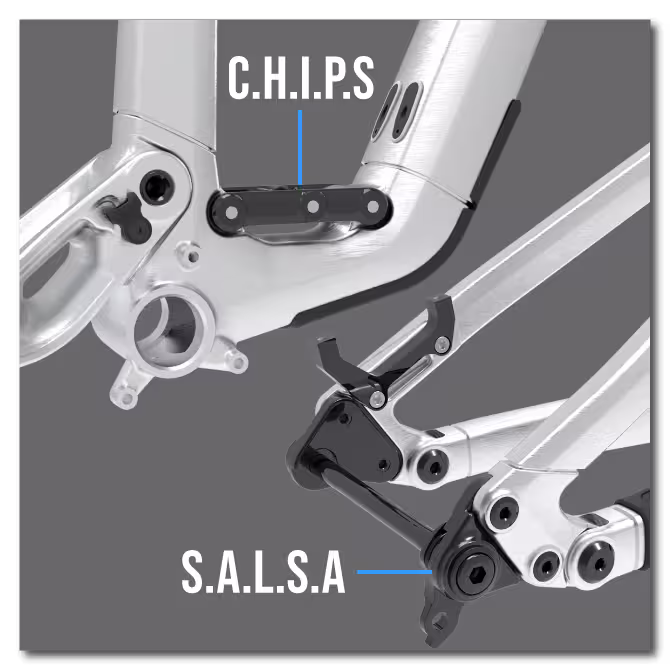

CHIPS - Changes Height Independently of Progression Setting

SALSA - Super Awesome Length Stay Adjusters

BOLT-ON PROTECTION - Robust bold on frame protection

FORGED ROCKER AND CHAINSTAY YOKE - incredible strength and stiffness for ultimate confidence

GRAVITY CAST BB AREA - complex frame shaping increasing strength and features

Geometry & Sizing

Small, Medium, Large, X-Large

Video

Frame Specifications

 OVERVIEW/BUY

BUILD SPECS

FEATURES

GEOMETRY

FRAME SPECS

FAQ'S

SUPPORT/SETUP

The Bottlerocket is back!
Built for those that color outside the lines.
We are excited to re-introduce one of the most legendary bikes in our history, the Bottlerocket! Just like the original model, the all-new Bottlerocket was designed around the progression of trail building and the culture of freeride. The 100% purely freeride focused model is proudly dual 27.5 specific, and the same frame can be run at 180mm or 200mm rear travel, with single crown and dual crown builds. The alloy frame has multiple adjustment options allowing riders to get the exact feel they are looking for, making it ready for huge hits, surfing scree, zesty bike park lines, and anywhere else that inspires you. Built in collaboration with our freeride athletes, this bike is 100% for riders, by riders.
AVAILABLE COLORS:
 Snowstorm
 Disco Flamingo
SELECT BUILD
  $4,699 USD

  $5,199 USD

  $2,499 USD

SELECT SIZE/COLOR
Small
   Ships Now
Small
   Ships Now

Medium
   Ships appx: 11/06/25
Medium
   Ships Now

Large
   Ships appx: 11/06/25
Large
   Ships Now

X-Large
   Ships appx: 11/06/25
X-Large
   Ships Now

$4,699 USD
IN STOCK: Ships within 2 business days
FREE SHIPPING: We offer free shipping on all bikes and frames, see checkout for additional details.
SHIP TO DEALER: If you prefer picking your bike up from your local authorized Transition Bikes dealer with free professional assembly, please make sure you choose Ship To Dealer during check out.
Add To Cart
Find a Dealer

+ More + More + More
PRICE $4,699 USD $5,199 USD $2,499 USD
FRAME Bottlerocket Alloy 180mm Bottlerocket Alloy 200mm Bottlerocket Alloy 180mm
WHEEL SIZE 27.5" 27.5" 27.5"
REAR SHOCK Marzocchi Bomber Air
(225x70mm)
Marzocchi Bomber Air
(225x75mm)
Marzocchi Bomber Air
(225x70mm)
FORK Marzocchi Bomber Z
(180mm)
Marzocchi Bomber 58
(203mm)
HEADSET FSA No.57E FSA No.57E Not Included
STEM Burgtec Enduro MK3 (35mm) RaceFace Chester 35 Direct Mount (50mm)
HANDLEBAR Burgtec Ride High Alloy
SM (780x20mm)
MD (780x30mm)
LG/XL (800x30mm)
Burgtec Ride High Alloy
SM/MD (780x20mm)
LG/XL (800x30mm)
GRIPS ODI Longneck V2.1 Lock On ODI Longneck V2.1 Lock On
SADDLE Burgtec Cloud Boost Burgtec Cloud Boost
SEATPOST SDG Tellis
SM (150mm)
MD (170mm)
LG (200mm)
XL (230mm)
Trans-X SP66
BRAKES SRAM Maven Base SRAM Maven Base
ROTORS SRAM Centerline (200mm) SRAM Centerline (203/200mm)
SHIFTER SRAM Eagle 70 MMX SRAM GX DH 7sp
DERAILLEUR SRAM Eagle 70 SRAM GX DH Medium Cage
CASSETTE SRAM XS 1270 (10-52t) SRAM PG 720 (11-25t)
CHAIN SRAM Eagle 70 SRAM PC 1130
CRANK SRAM Eagle 70 DUB
(30t/165mm)
SRAM Descendent DUB
(34t/165mm)
CHAINGUIDE e13 Vario Chainguide - Enduro e13 Vario Chainguide - Enduro
RIMS E*Thirteen Grappler Core E*Thirteen Grappler Core
SPOKES Pillar Straight Gauge Pillar Straight Gauge
HUBS Novatech D951SB/D902SB Novatech D951SB/D902SB
TIRE/FRONT Schwalbe Magic Mary
Super Trail, Soft (2.4)
Schwalbe Magic Mary
Super Gravity, Ultra Soft (2.4)
TIRE/REAR Schwalbe Big Betty
Super Trail, Soft (2.4)
Schwalbe Big Betty
Super Gravity, Soft (2.4)
INCLUDED Tubeless Valves & Sealant Tubeless Valves & Sealant
COLOR OPTIONS
Snowstorm
Disco Flamingo
Snowstorm
Disco Flamingo
Snowstorm
Disco Flamingo
WEIGHT 39.1 lbs / 17.75 kg (Size MD) 11.4 lbs / 5.18 kg (Size MD)
Specs are subject to change at any time. All complete bikes are 95% assembled and packaged for quick and easy final assembly, and as such, Transition Bikes is not able to make special request build spec changes or modifications to packaging.
Show More
Bottlerocket history
THE HISTORY OF THE BOTTLEROCKET
LEARN MORE
Bottlerocket Background Image

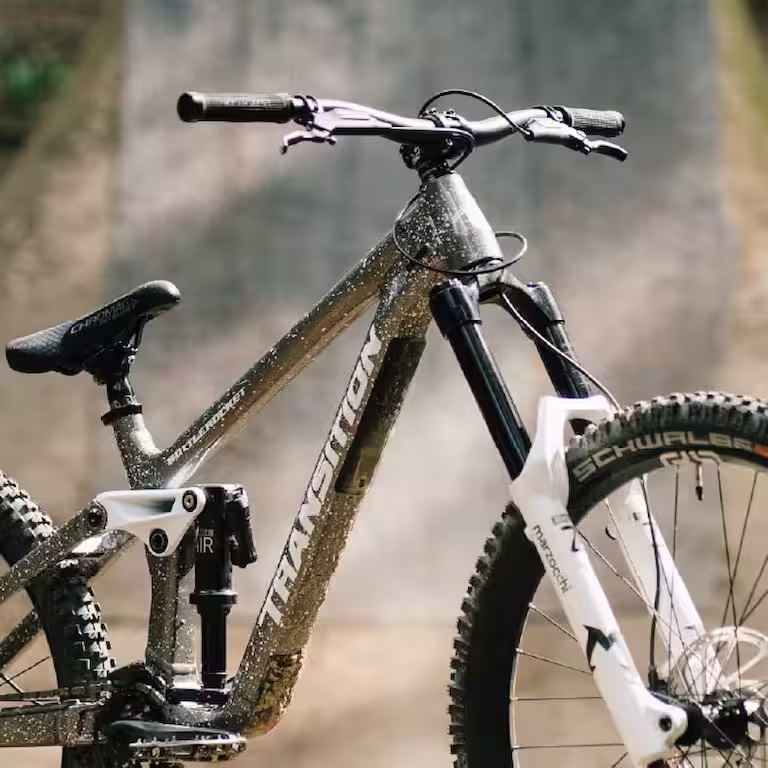

Bottlerocket Dual Crown Two Build Options

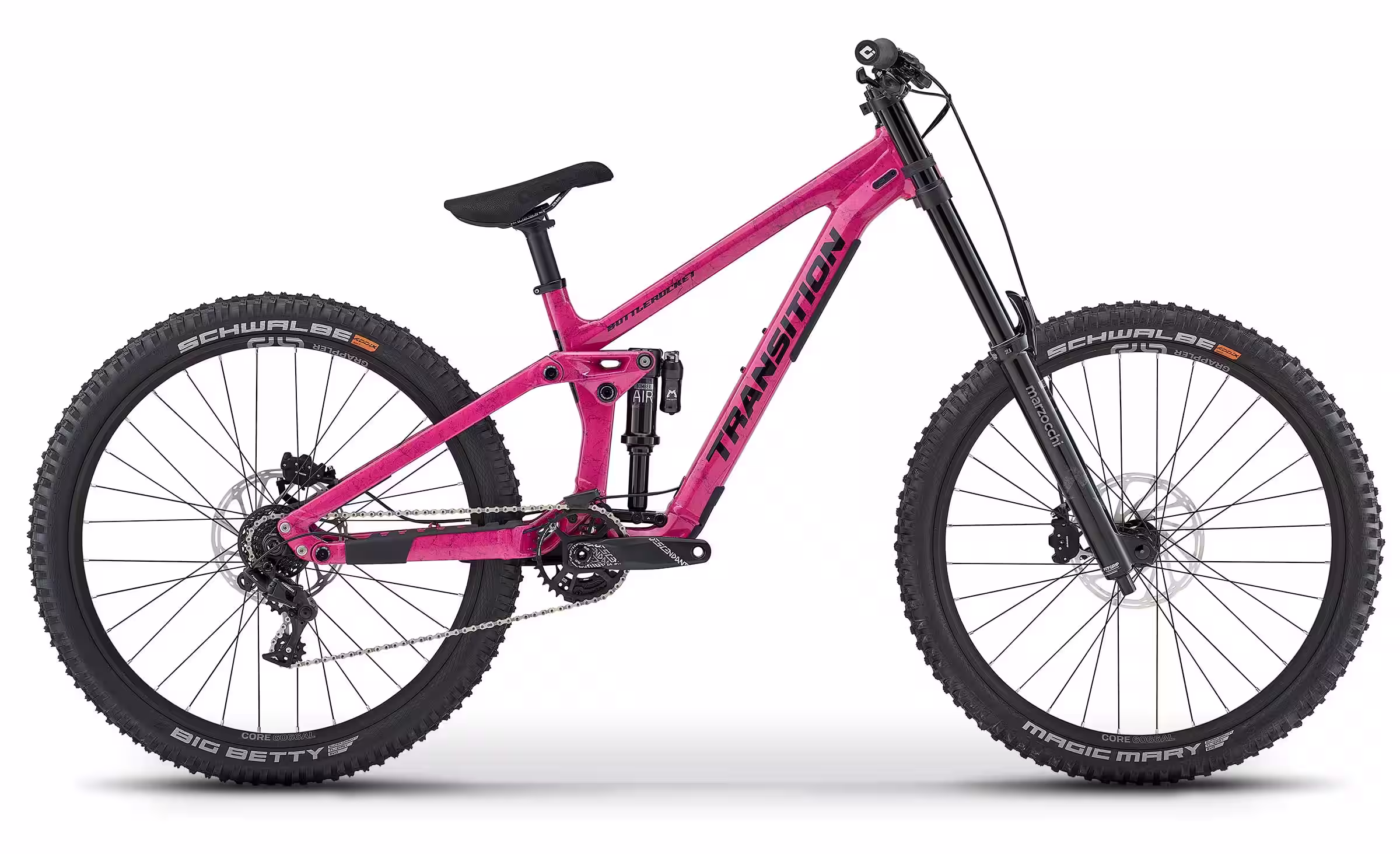

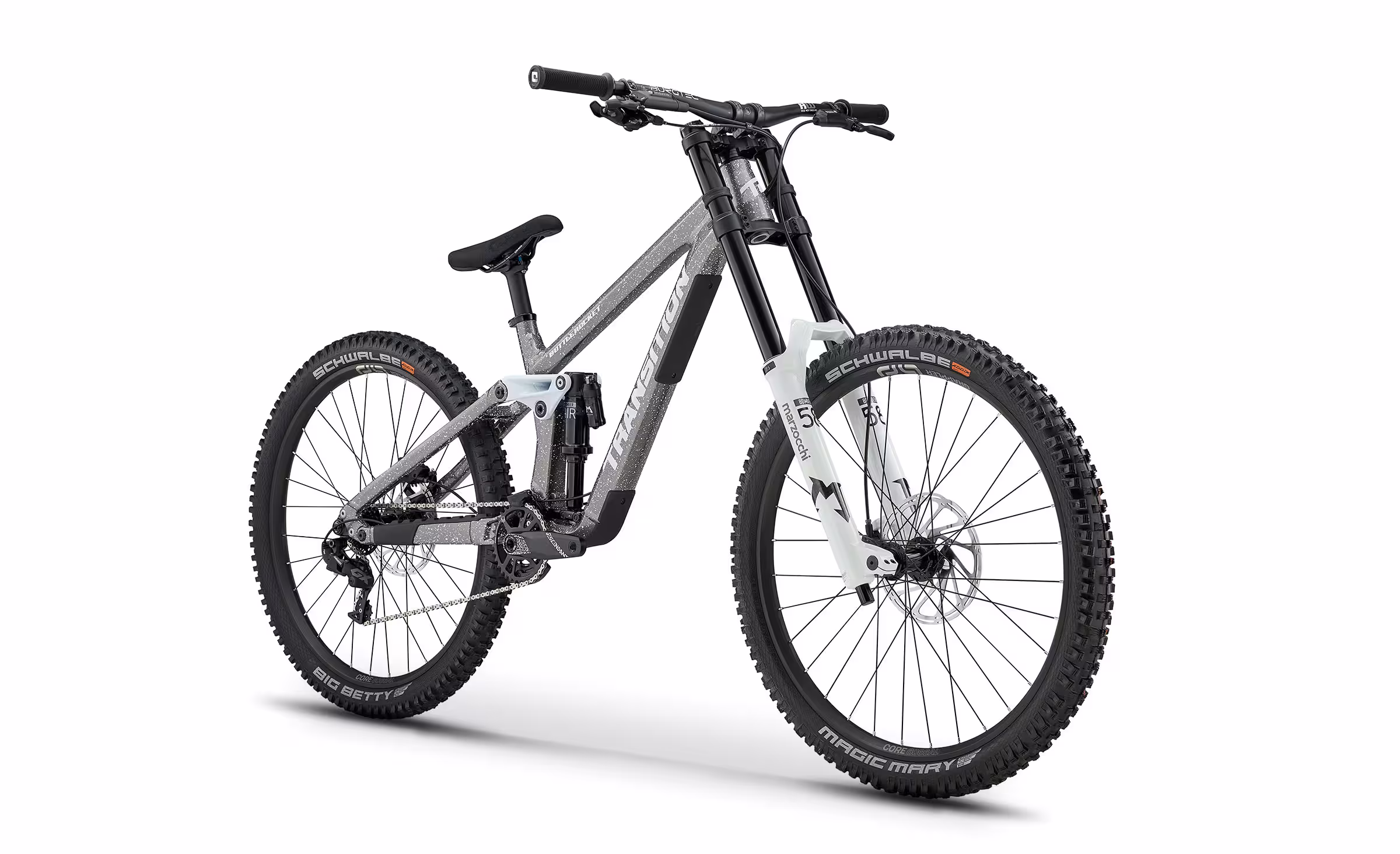

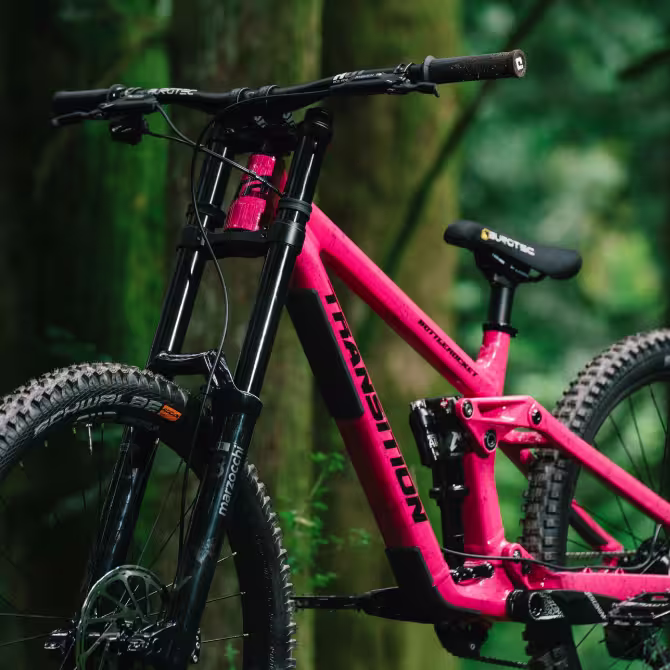

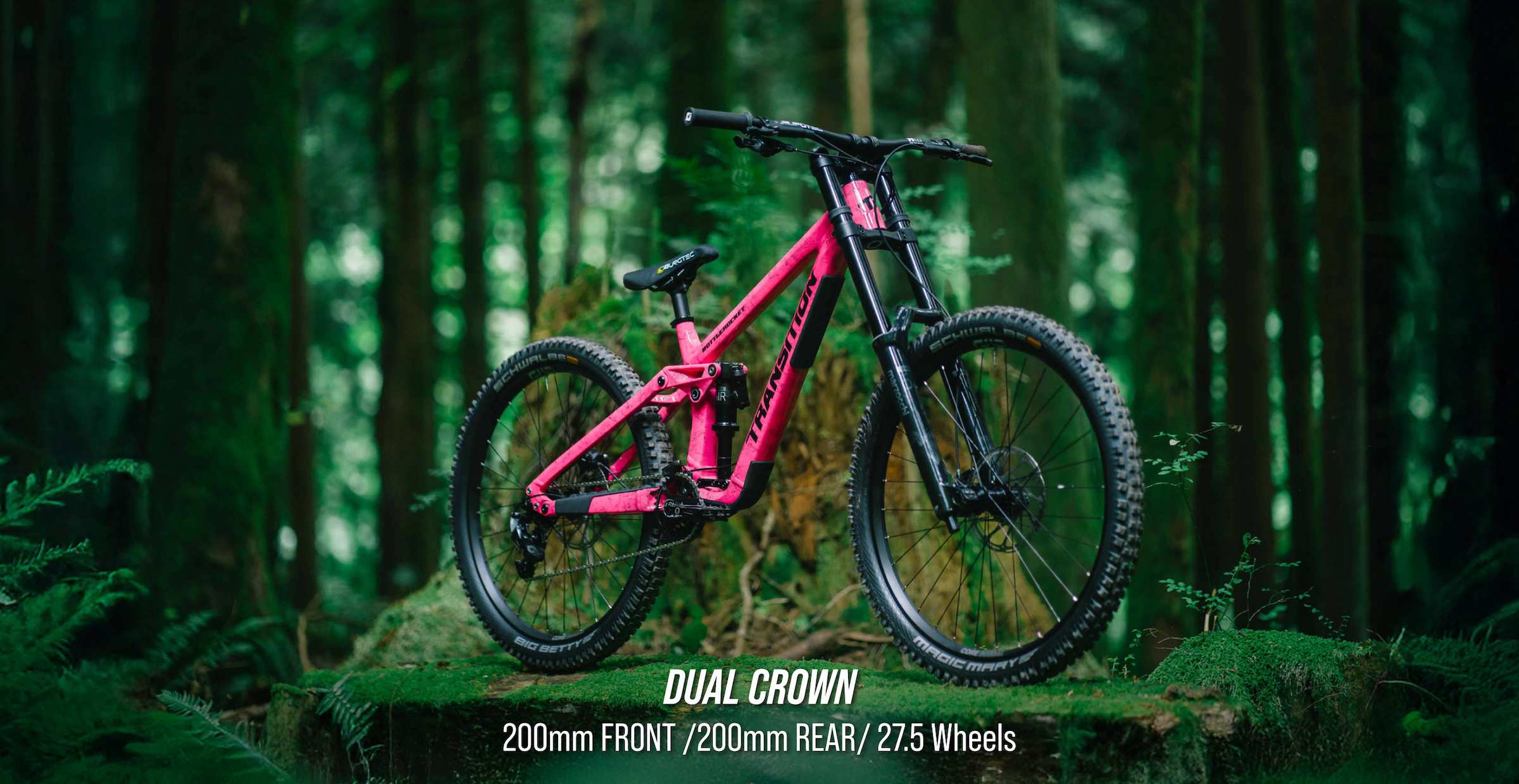

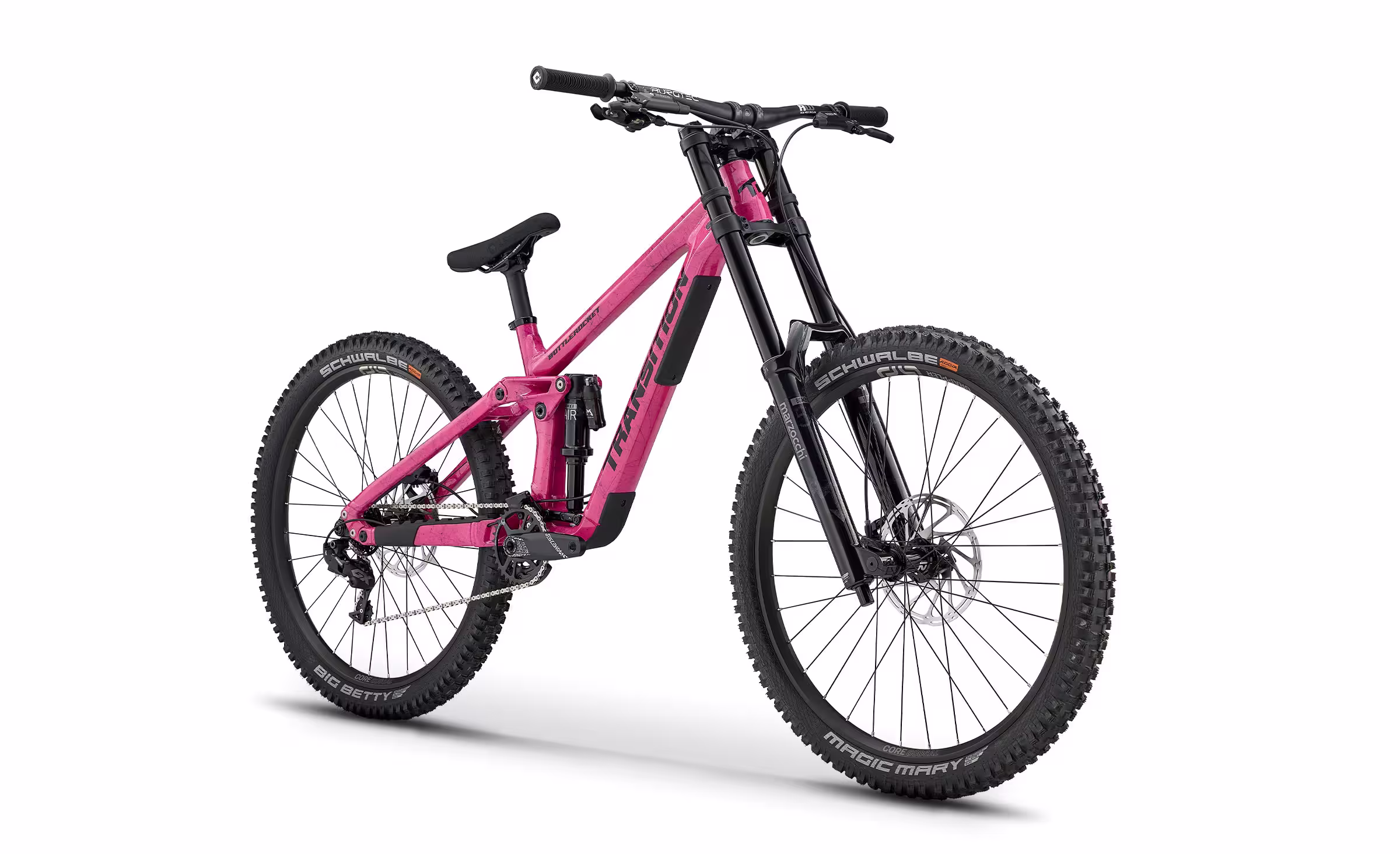

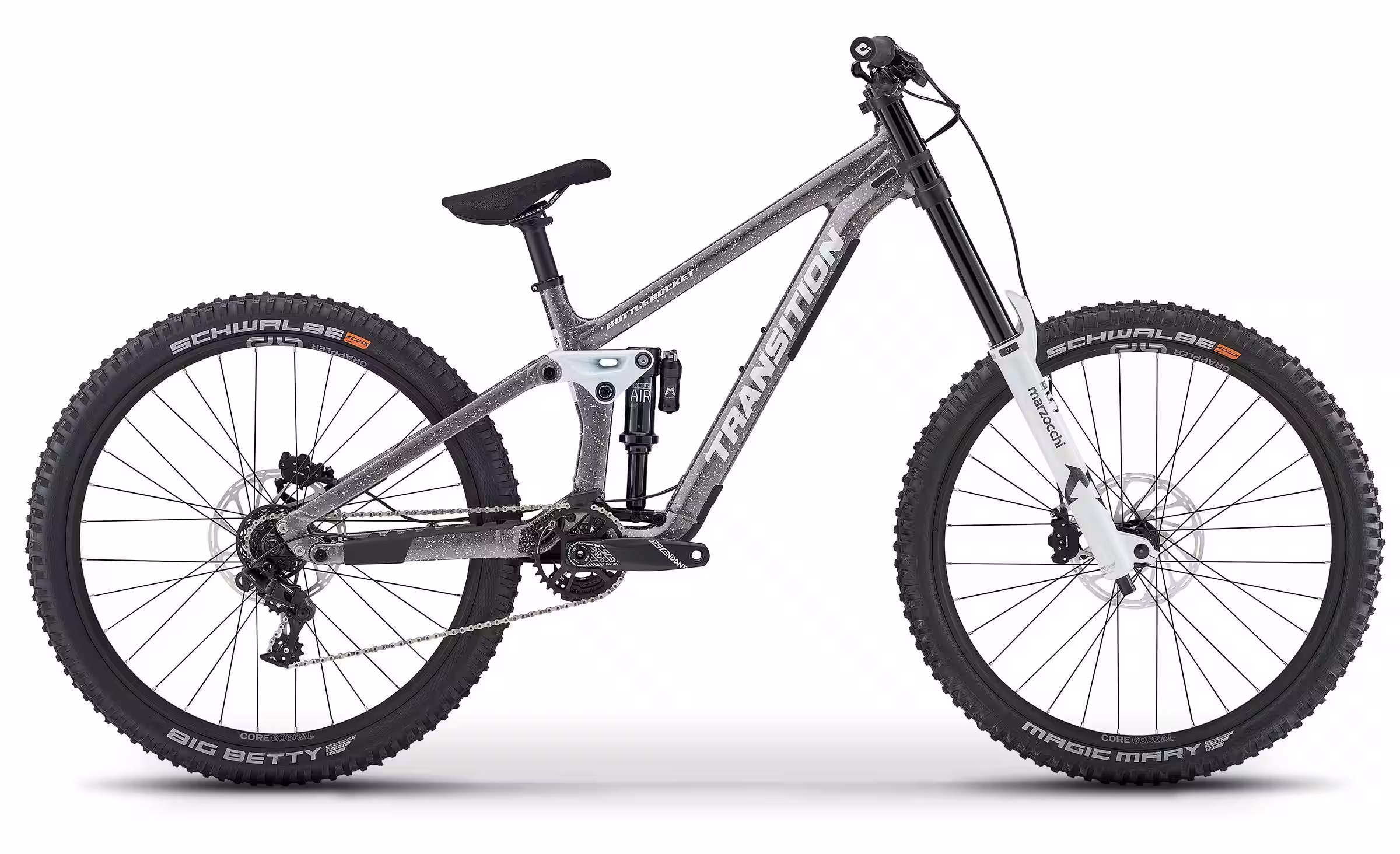

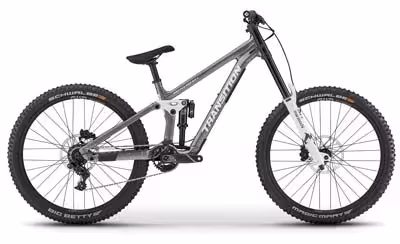

Dual Crown
Ready to ride off cliffs or hit the lifts. The dual crown build features 200mm travel from Marzocchi's 58mm fork in front and 200mm of travel from the Bomber air shock out back. Paired with the SRAM GX DH drivetrain and straight seatpost, this robust build is ready for lap after lap.

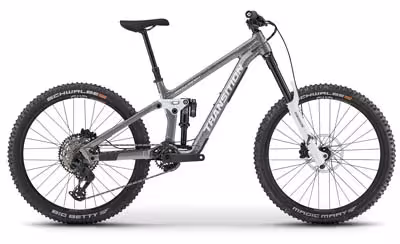

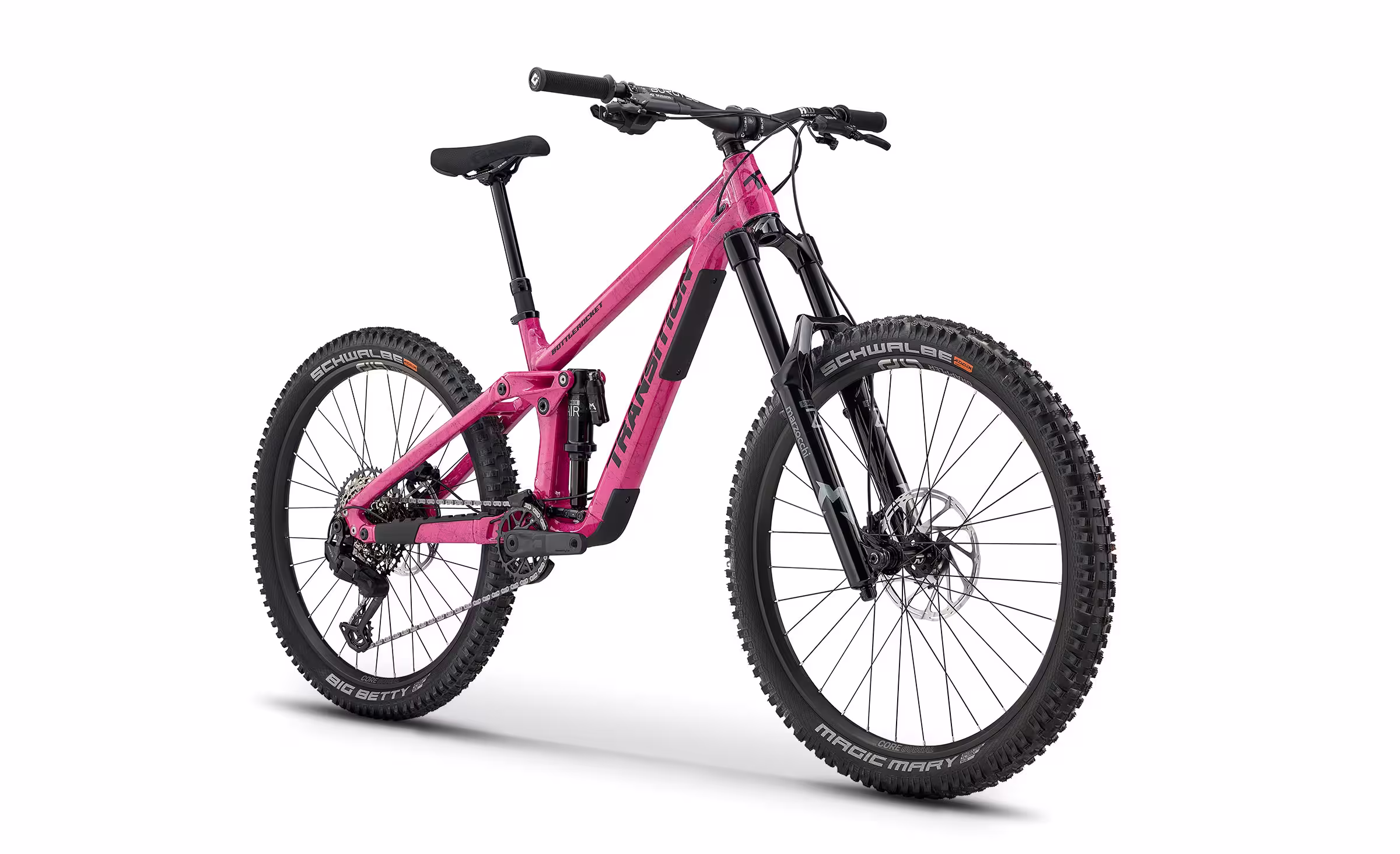

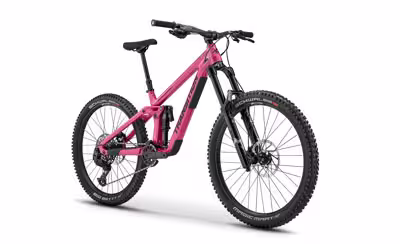

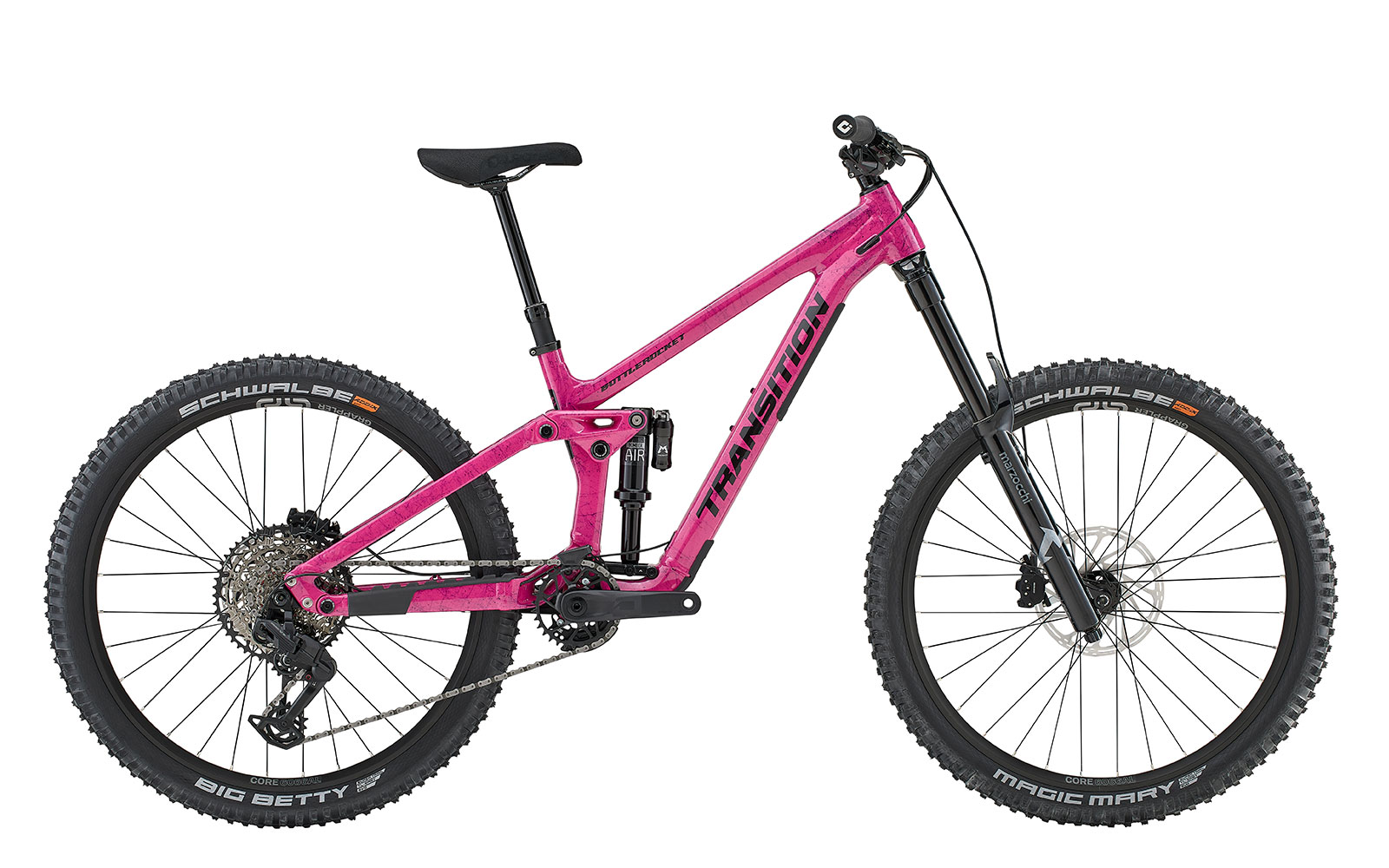

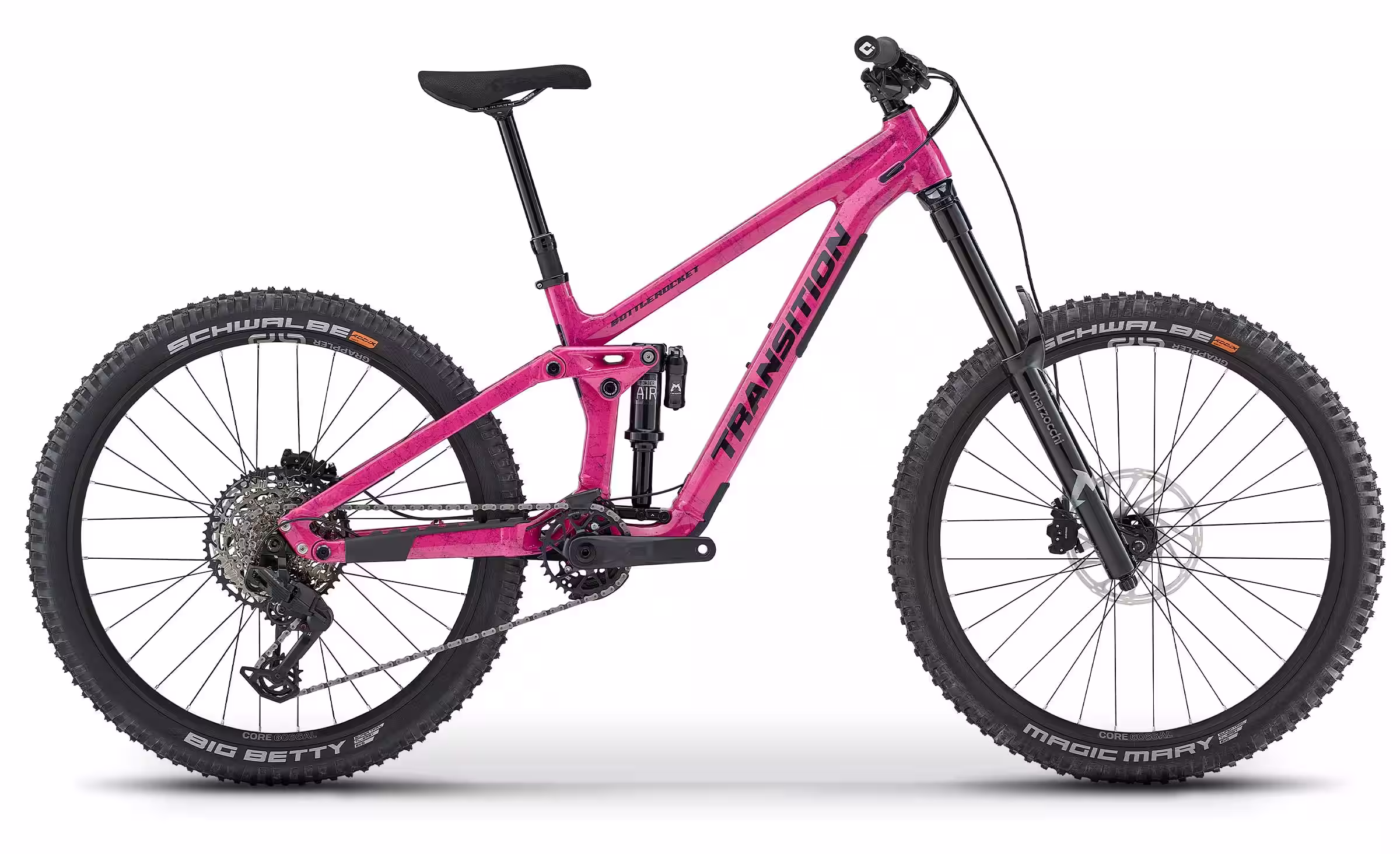

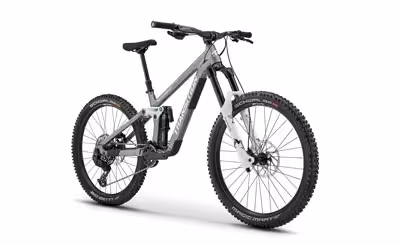

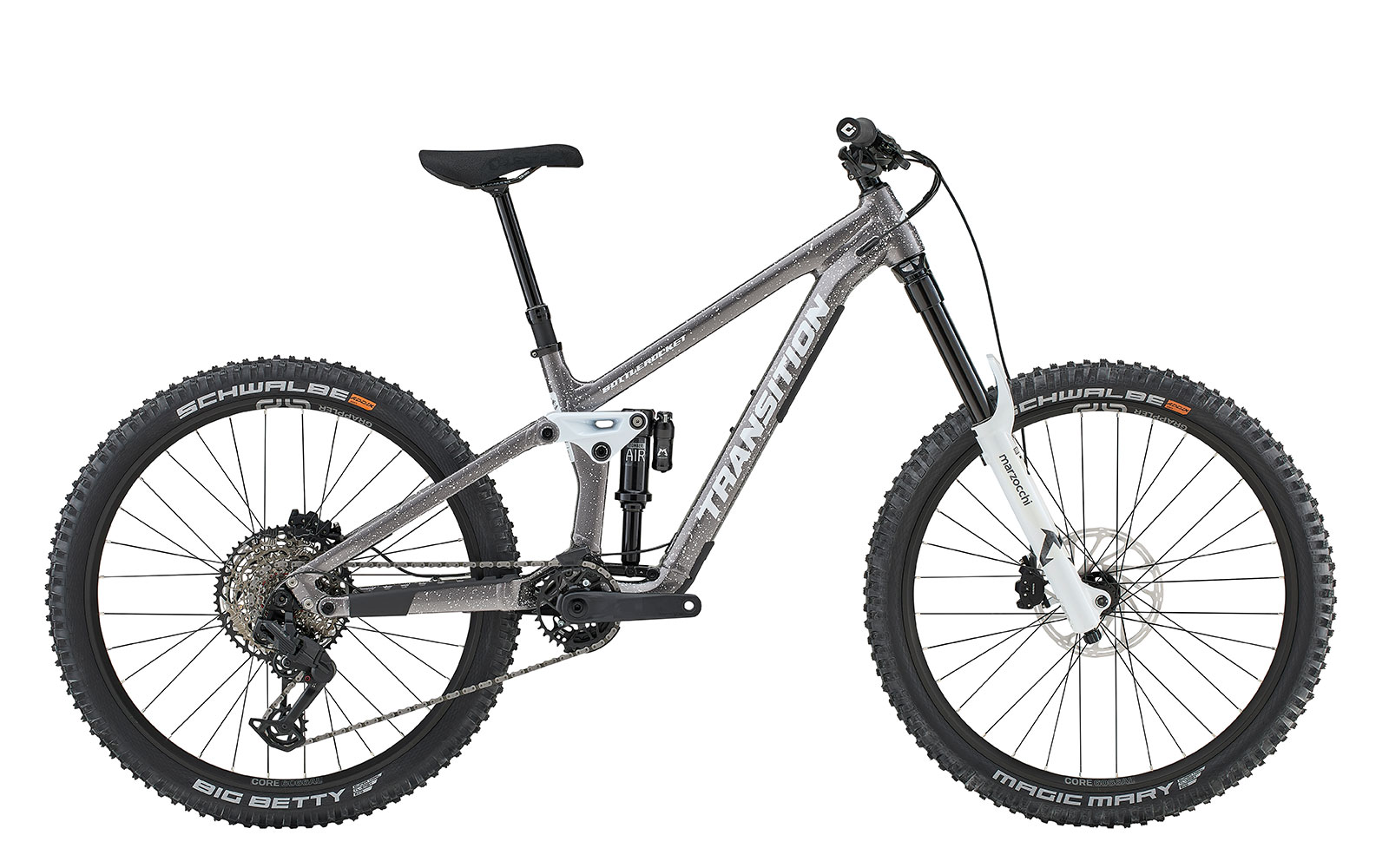

Single Crown
This long travel slopestyle rig's only limitation is your imagination. No trick, line or zone is inaccessible to the 180mm/180mm travel Bottlerocket. Equipped with a dropper post and wide range cassette, you can easily spin up for your favorite local lap or remote mission to backcountry scree.
Bottlerocket Single Crown
Bottlerocket Background Image
Two Build Options
Bottlerocket Dual Crown
Dual Crown
Ready to ride off cliffs or hit the lifts. The dual crown build features 200mm travel from Marzocchi's 58mm fork in front and 200mm of travel from the Bomber air shock out back. Paired with the SRAM GX DH drivetrain and straight seatpost, this robust build is ready for lap after lap.
Single Crown
This long travel slopestyle rig's only limitation is your imagination. No trick, line or zone is inaccessible to the 180mm/180mm travel Bottlerocket. Equipped with a dropper post and wide range cassette, you can easily spin up for your favorite local lap or remote mission to backcountry scree.
Bottlerocket Single Crown
Bottlerocket Slider Image
DIG INTO THE DETAILS

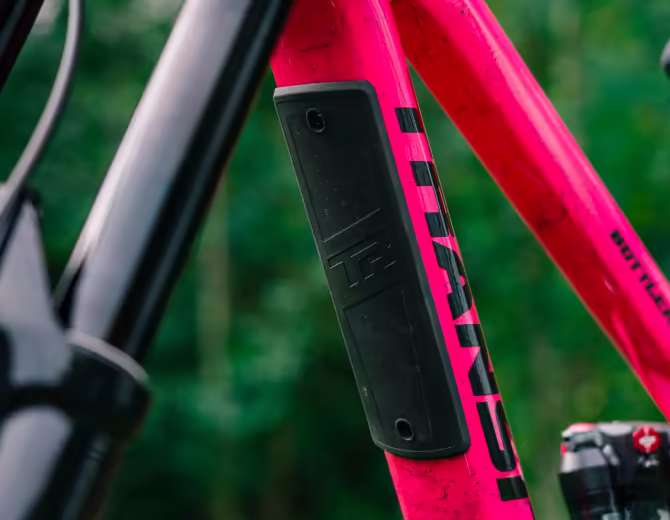

BOLT-ON PROTECTION

Shred more, worry less with the new downtube protection designed specifically for the Bottlerocket. Robust rubber downtube protection prevents rock chips and shuttle wear around the mid and lower downtube areas. These are held securely in place with two small fasteners and easily replaceable when the time comes.

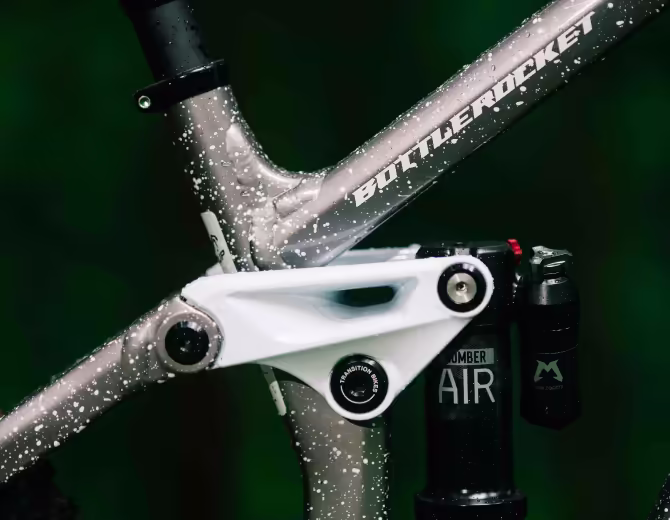

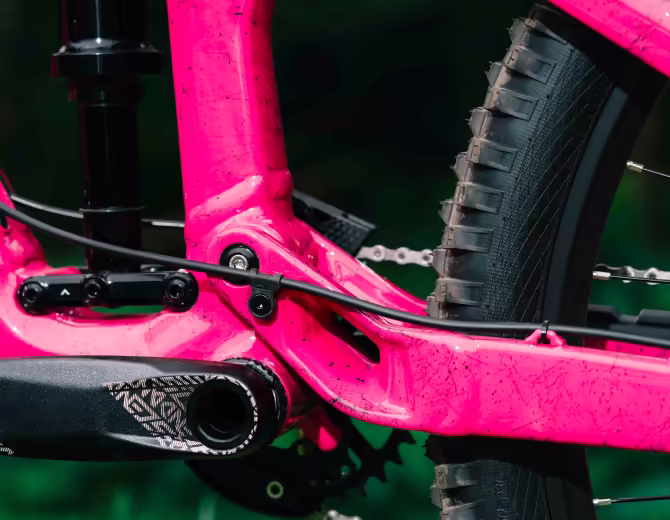

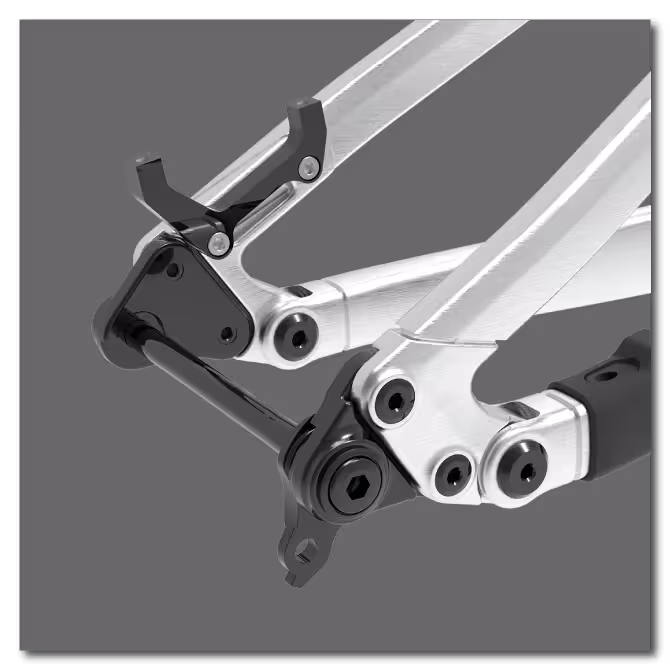

FORGED ROCKER AND CHAINSTAY YOKE

For freeride, confidence is everything, and the last thing we want you worrying about is your bike. To ensure the Bottlerocket will take hit after hit, we built new, forged rockers and chainstays, each with their own bridge to add incredible strength, and stiffness. Together these pieces ensure suspension movement is as smooth as possible while minimizing rear end flex, tire rub, and staying strong for seasons on end.
Bottlerocket Gravity Cast BB Area

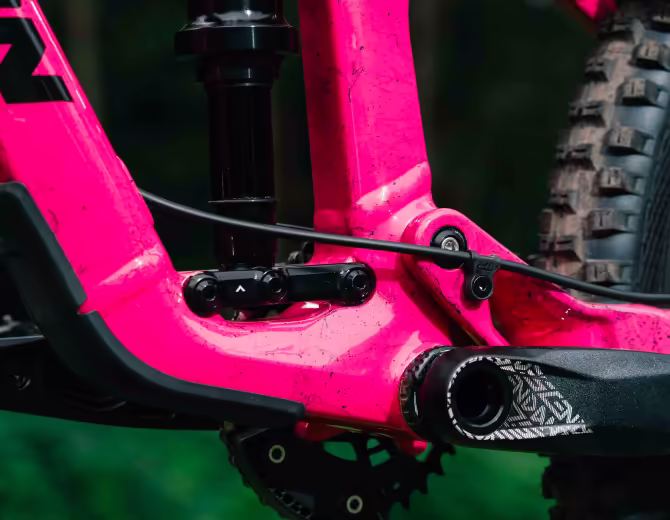

GRAVITY CAST BB AREA

This section of the frame is a single gravity-cast piece that is simple, strong, and precisely aligned. The process allows us to create a complex shape that integrates the C.H.I.P.S system while preserving deep dropper post insertion, all with fewer welds for added strength and reliability.

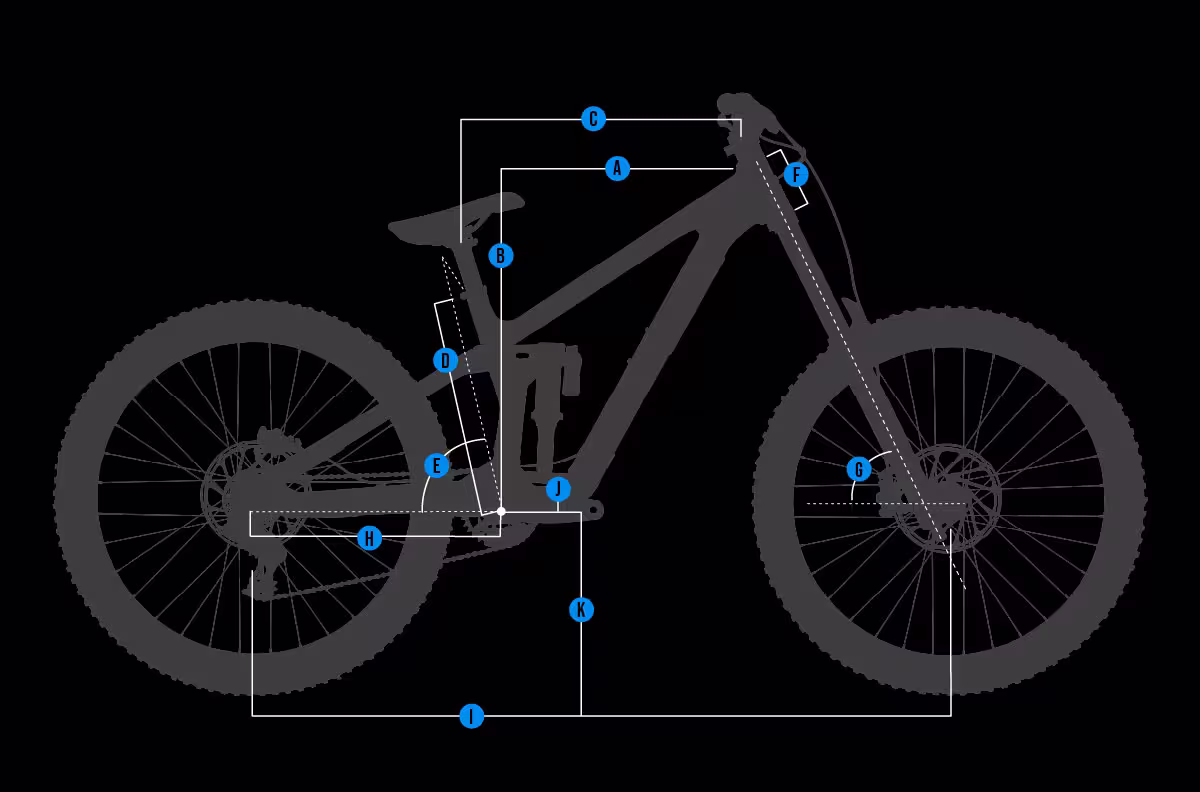

Bottlerocket Geometry


SM MD LG XL
High | Low High | Low High | Low High | Low
A.REACH 425 | 421 450 | 446 475 | 471 500 | 496
B.STACK 607 | 610 616 | 619 625 | 628 625 | 628
C.EFFECTIVE TOPTUBE LENGTH 538 | 533 573 | 568 606 | 601 638 | 633
D.SEATTUBE LENGTH 360 390 420 440
E.EFFECTIVE SEATTUBE ANGLE 79.4 | 79.0 78.7 | 78.4 78.2 | 77.8 77.7 | 77.3
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE 600 660 720 780
ACTUAL SEATTUBE ANGLE 72.0 | 71.6 72.0 | 71.6 72.0 | 71.6 72.0 | 71.6
SEATTUBE OFFSET AT BOTTOM BRACKET 78.2 78.2 78.2 78.2
F.HEADTUBE LENGTH 100 110 120 120
G.HEADTUBE ANGLE 64.0 | 63.6 64.0 | 63.6 64.0 | 63.6 64.0 | 63.6
H.CHAINSTAY LENGTH 435 435 435 435
I.WHEELBASE 1191 1220 1249 1279
J.BOTTOM BRACKET DROP (REAR) 15 | 20 15 | 20 15 | 20 15 | 20
K.ESTIMATED BOTTOM BRACKET HEIGHT 340 | 335 340 | 335 340 | 335 340 | 335
Bottlerocket Collage


Frame Specifications

GENERAL SPECS
FRAME MATERIAL: Alloy
WHEEL SIZE: 27.5"
SIZES: SM, MD, LG, XL
COMPONENT COMPATABILITY
FORK OFFSET: 37-51mm
FORK AXLE-TO-CROWN: 577-589mm (Includes Headset)
HEADSET (TOP): 44mm Zero Stack (ZS44)
HEADSET (BOTTOM): 56mm Zero Stack (ZS56)
BB: 73mm BSA Threaded
ISCG TABS: ISCG05
CHAINRING MAXIMUM: 38 Tooth
CHAINLINE: 55mm Standard (With Guide)
52mm Optional (Without Guide)
REAR BRAKE MOUNT: Post Mount 200mm
223mm Max Rotor Size
DERAILLEUR HANGER: SRAM UDH
REAR AXLE: Transition 148mm Axle For UDH (TRB-HAX)
SEAT CLAMP: 37mm
SEATPOST DIAMETER: 31.6mm
NOTES: Optional +5mm, +10mm Dropouts & Brake Mounts Sold Separately
SUSPENSION SPECS
FRONT TRAVEL: 180mm (Single Crown)
200-203mm (Dual Crown)
REAR TRAVEL: 180mm (70mm Stroke)
203mm (75mm Stroke)
SHOCK SIZE: 225mm x 70-75mm
SHOCK HARDWARE: Trunnion Mount Top
30mm x 8mm Bottom
