FRAME | Patrol Alloy 160mm | Patrol Alloy 160mm | Patrol Alloy 160mm | Patrol Alloy 160mm | Patrol Alloy 160mm | |
REAR SHOCK | Fox Float X2 Factory 2 Position (205x60) |
RockShox Super Deluxe Ultimate Air (205x60) |
Fox Float X Performance 2 Position (205x60) |
Fox Float X Performance 2 Position (205x60) |
Fox Float X2 Factory 2 Position (205x60) |
|
FORK | Fox Float 38 Grip 2 Factory 160mm Travel/44mm Offset |
RockShox ZEB Ultimate 160mm Travel/44mm Offset |
Marzocchi Bomber Z1 Air 160mm Travel/44mm Offset |
Marzocchi Bomber Z1 Air 160mm Travel/44mm Offset |
||
HEADSET | FSA NO.55R/57 | FSA NO.55R/57 | FSA NO.55R/57 | FSA NO.55R/57 | FSA NO.55R/57 (included) |
|
STEM | ANVL Swage (40mm) | ANVL Swage (40mm) | RaceFace Aeffect R (40mm) | RaceFace Aeffect R (40mm) | ||
HANDLEBAR | ANVL Mandrel Alloy 35 SM (800x20) MD/LG/XL (800x30) |
ANVL Mandrel Alloy 35 SM (800x20) MD/LG/XL (800x30) |
RaceFace Chester 35 SM (780x20) MD/LG/XL (780x35) |
RaceFace Chester 35 SM (780x20) MD/LG/XL (780x35) |
||
GRIPS | Sensus Lite | Sensus Lite | Sensus Lite | Sensus Lite | ||
SADDLE | ANVL Forge Cromo | ANVL Forge Cromo | ANVL Forge Cromo | ANVL Forge Cromo | ||
SEATPOST | OneUp Dropper Post | OneUp Dropper Post | OneUp Dropper Post | OneUp Dropper Post | ||
BRAKES | Shimano XT M8120 | SRAM Code RSC | Shimano Deore M6120 | SRAM Code R or SRAM Guide RE 4-Piston | ||
ROTORS | Shimano RT86 (203mm) | SRAM Centerline (200mm) | Shimano RT70 (203mm) | SRAM Centerline (200mm) | ||
SHIFTER | Shimano XT M8100 | SRAM GX Eagle | Shimano Deore M6100 | SRAM NX Eagle MMX | ||
DERAILLEUR | Shimano XT M8100 | SRAM GX Eagle | Shimano Deore M6100 | SRAM NX Eagle | ||
CASSETTE | Shimano XT M8100 (10-51t) | SRAM XG 1275 (10-52t) | Shimano Deore M6100 (10-51t) | SRAM PG 1230 (10-50t) | ||
CHAIN | Shimano XT M8100 | SRAM GX Eagle | Shimano Deore M6100 | SRAM NX Eagle | ||
CHAINGUIDE | OneUp Bash Guide | OneUp Bash Guide | OneUp Bash Guide | OneUp Bash Guide | ||
CRANK | Shimano XT M8100 (32t/165mm) | SRAM GX Alloy DUB (32t/165mm) | RaceFace Aeffect R (32t/165mm) | SRAM Descendent 6K DUB (32t/165mm) | ||
RIMS | DT Swiss EX 1700 Spline 30 | Stans Flow S1 | Stans Flow D | Stans Flow D | ||
SPOKES | DT Swiss Competition | Sapim Race Double Butted | Pillar Double Butted | Pillar Double Butted | ||
HUBS | DT Swiss 350 Straight Pull 36SL | Stans Neo Durasync | Shimano MT410-B | Novatec D791SB-B15/D902SB-B12 | ||
TIRE/FRONT | Schwalbe Magic Mary, Super Trail, Soft (29x2.4) | Schwalbe Magic Mary, Super Trail, Soft (29x2.4) | Schwalbe Magic Mary, Super Trail, Soft (29x2.4) | Schwalbe Magic Mary, Super Trail, Soft (29x2.4) | ||
TIRE/REAR | Schwalbe Big Betty, Super Trail, Soft (27.5x2.4) | Schwalbe Big Betty, Super Trail, Soft (27.5x2.4) | Schwalbe Big Betty, Super Trail, Soft (27.5x2.4) | Schwalbe Big Betty, Super Trail, Soft (27.5x2.4) | ||
INCLUDED | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Stans Sealant (6oz) | Tubeless Valves & Stans Sealant (6oz) | ||
WEIGHT | 34.6 lbs / 15.69 kg (Size MD) | 34.1 lbs / 15.47 kg (Size MD) | 36 lbs / 16.33 kg (Size MD) | 36.2 lbs / 16.42 kg (Size MD) | 10.2 lbs / 4.63 kg (Size MD w/shock) | |
Specs are subject to change at any time. |
![]() |
![]() |
Speed Balanced Geometry ![]() SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider. ![]() ![]() |
||||||
![]() |
SM HIGH/LOW |
MD HIGH/LOW |
LG HIGH/LOW |
XL HIGH/LOW |
![]() |
||
![]() |
![]() | ||||||
![]() |
A. REACH | 420 / 415 | 455 / 450 | 480 / 475 | 510 / 505 | ||
![]() |
![]() |
||||||
![]() |
B. STACK | 623 / 628 | 623 /628 | 632 / 637 | 641 / 646 | ||
![]() |
![]() |
||||||
![]() |
C. EFFECTIVE TT LENGTH | 540 / 543 | 575 / 578 | 603 / 606 | 636 / 639 | ||
![]() |
![]() |
||||||
![]() |
D. SEAT TUBE LENGTH | 360 | 390 | 430 | 460 | ||
![]() |
![]() |
||||||
![]() |
E. EFFECTIVE ST ANGLE | 79.6° / 79.1° | 78.8° / 78.3° | 78.1° / 77.6° | 77.5° / 77° | ||
![]() |
![]() |
||||||
![]() |
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 600 | 660 | 720 | 780 | ||
![]() |
![]() |
||||||
![]() |
ACTUAL ST ANGLE | 70.5° / 70° | 70.5° / 70° | 70.5° / 70° | 70.5° / 70° | ||
![]() |
![]() |
||||||
![]() |
SEAT TUBE OFFSET AT BB | 100 | 100 | 100 | 100 | ||
![]() |
![]() |
||||||
![]() |
F. HEAD TUBE LENGTH | 100 | 100 | 110 | 120 | ||
![]() |
![]() |
||||||
![]() |
G. HEAD TUBE ANGLE | 63.5° / 63° | 63.5° / 63° | 63.5° / 63° | 63.5° / 63° | ||
![]() |
![]() |
||||||
![]() |
H. CHAINSTAY LENGTH | 434 / 436 | 434 / 436 | 440 / 442 | 440 / 442 | ||
![]() |
![]() |
||||||
![]() |
I. WHEELBASE | 1196 / 1198 | 1231 / 1233 | 1266 / 1268 | 1301 / 1303 | ||
![]() |
![]() |
||||||
![]() |
J. BOTTOM BRACKET DROP | 15 / 22 | 15 / 22 | 15 / 22 | 15 / 22 | ||
![]() |
![]() |
||||||
![]() |
K. ESTIMATED BB HEIGHT | 340 / 333 | 340 / 333 | 340 / 333 | 340 / 333 | ||
![]() |
![]() |
||||||
![]() |
L. STAND OVER HEIGHT | 675 / 685 | 690 / 700 | 705 / 715 | 720 / 730 | ||
![]() |
![]() |
||||||
![]() |
M. FORK OFFSET | 44 | 44 | 44 | 44 | ||
![]() |
![]() |
||||||
![]() |
![]() |
![]() |

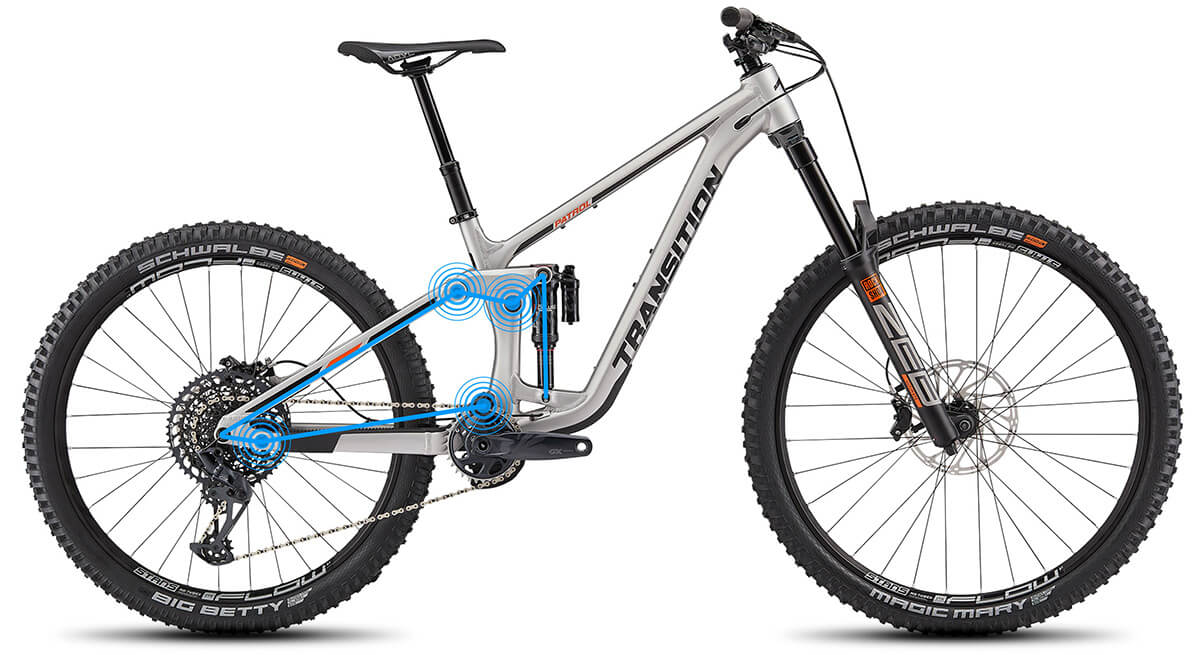

![]() ![]() GIDDYUP SUSPENSION DESIGN ![]() We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good. ![]() The GiddyUp suspension layout is tuned to work correctly with both air and coil rear shocks. Riders are able to add or remove volume spacers in the rear air shock to suit their individual riding style and there is plenty of bottom out control with air or coil shocks when things get rowdy. The Patrol has 160mm of rear wheel travel when used with the supplied 205mm x 60mm stroke shock. It is also possible to install a longer, 205mm x 65mm stroke shock to increase the rear wheel travel to 170mm if you are after a longer travel experience. A suggested sag range of 27 - 33% allows the rider to tune the feel of the bike; from a firm and snappy jump and slash mode, to a more supple and active full on party mode. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp. | ![]() |
![]() ![]() |
REAR TRAVEL: |   160mm (Compatible with 170mm) | ||
![]() |
|||
FRONT TRAVEL: |   160mm (Compatible with 170mm single crown fork or dual crown forks) | ||
![]() |
|||
WHEEL SIZE: |   29" Front / 27.5" Rear | ||
![]() |
|||
SIZES: |   SM, MD, LG, XL | ||
![]() |
|||
COLORS: |   Blueberry, Raw | ||
![]() |
|||
FRAME BEARINGS: |   2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900 | ||
![]() |
|||
FORK AXLE TO CROWN: |   574mm at 160mm | ||
![]() |
|||
FORK OFFSET: |   44mm | ||
![]() |
|||
REAR SHOCK SIZE: |   205mm x 60mm (Compatible with 205mm x 65mm) | ||
![]() |
|||
SHOCK HARDWARE: |   Trunnion Mount Top / 30mm x 8mm Bottom | ||
![]() |
|||
HEADSET (TOP): |   56mm Zero Stack | ||
![]() |
|||
HEADSET (BOTTOM): |   56mm Zero Stack | ||
![]() |
|||
BB SHELL: |   73mm BSA Threaded | ||
![]() |
|||
CHAINLINE: |   52mm | ||
![]() |
|||
REAR BRAKE MOUNT: |   180mm Post Mount, Max Rotor Size 223mm | ||
![]() |
|||
DERAILLEUR HANGER: |   SRAM UDH | ||
![]() |
|||
REAR AXLE: |   Transition Axle For UDH, 12mm x 148mm Spacing | ||
![]() |
|||
ISCG TABS: |   ISCG05 | ||
![]() |
|||
SEATPOST DIAMETER: |   31.6mm | ||
![]() |
|||
SEAT CLAMP: |   34.9mm | ![]() |
|
MAX SEATPOST INSERTION: |   Small 200mm | Medium 230mm | Large 270mm | X-Large 300mm | ||
![]() |
|||
MAX CHAINRING SIZE: |   34T Standard Single Ring (Based on 52mm Boost Chainline) | ||
![]() |
|||
MAX TIRE SIZE: |   27.5 x 2.6 | ||
![]() |
![]() |
||
REAR SHOCK SAG: |   160mm/60mm: 16-20mm (27-33%)   170mm/65mm: 18-22mm (28-34%) |
