Black Chrome
Primer Blue
Add To Cart
|
 |
 |
 |
 |
| PRICE | $7299 USD | $5299 USD | $3299 USD | $3299 USD |
| FRAME | TR11 Carbon 200mm Rear/200mm Front | TR11 Carbon 200mm Rear/200mm Front | TR11 Carbon 200mm Rear/200mm Front | TR11 Carbon 200mm Rear/200mm Front |
| REAR SHOCK | Fox DHX2 Factory SM - 400lb / MD - 450lb / LG - 500lb / XL - 550lb |
RockShox Super Deluxe Coil Ultimate DH SM - 400lb / MD - 450lb / LG - 500lb / XL - 550lb |
Fox DHX2 Factory SM - 400lb / MD - 450lb / LG - 500lb / XL - 550lb |
RockShox Super Deluxe Coil Ultimate DH SM - 400lb / MD - 450lb / LG - 500lb / XL - 550lb |
| FORK | Fox Float 40 Grip 2 Performance Elite 203mm Travel/52mm Offset |
RockShox Boxxer Select 200mm Travel/46mm Offset |
||
| HEADSET | Transition Reach Adjust | Transition Reach Adjust | Transition Reach Adjust | Transition Reach Adjust |
| STEM | RaceFace Atlas DM 50mm | RaceFace Chester DM 50mm | ||
| HANDLEBAR | ANVL Mandrel 35 SM (800mm x 20mm) MD/LG (800mm x 30mm) XL (800mm x 40mm) |
RaceFace Chester 35 SM (780mm x 20mm) MD/LG/XL (780mm x 35mm) |
||
| GRIPS | ODI Elite Flow | ODI Elite Flow | ||
| SADDLE | ANVL Forge Ti | ANVL Forge Cromo | ||
| SEATPOST | JD SP66 | JD SP66 | ||
| BRAKES | SRAM Code RSC | SRAM Code R | ||
| ROTORS | SRAM Centerline (203/200mm) | SRAM Centerline (200mm) | ||
| SHIFTER | SRAM XO1 DH | SRAM GX DH | ||
| DERAILLEUR | SRAM XO1 DH | SRAM GX DH | ||
| CASSETTE | SRAM XG 795 (10-24t) | SRAM PG 720 (11-25t) | ||
| CHAIN | SRAM PC 1170 | SRAM PC 1130 | ||
| CHAINGUIDE | One Up Bash Guide | One Up Bash Guide | ||
| CRANK | SRAM Descendent Carbon DH DUB (36t/165mm) | SRAM Descendent DH DUB (36t/165mm) | ||
| WHEELSET | Stans Flow EX3 Team | Stans Flow S1 w/Novatech D951SB/DH82SB Hubs | ||
| TIRE/FRONT | Maxxis Minion DHF 3C DH (27.5 x 2.5) | Maxxis Minion DHF 3C DH (27.5 x 2.5) | ||
| TIRE/REAR | Maxxis Minion DHRII 3C DH (27.5 x 2.4) | Maxxis Minion DHRII 3C DH (27.5 x 2.4) | ||
| WEIGHT | Medium Complete Bike 33.9 lbs / 15.38 kg | Medium Complete Bike 34.3 lbs / 15.56 kg | Medium Frame (With Shock): 8.80 lbs / 4.00 kg | Medium Frame (With Shock): 8.80 lbs / 4.00 kg |
| Specs are subject to change at any time. | ||||
 |
|
Geometry That Goes To 11 After proving itself on the World Cup circuit as one of the top DH bikes on the market, the all-new TR11 is back with a full geometry refresh. Our goal was simple, a more balanced rider position to improve front-wheel traction and provide more control when trails turn nasty. The new TR11 has longer chainstays, increased reach and a slightly higher bottom bracket to put the rider in the perfect attack position. |
||||||
|
SM | MD | LG | XL | |
||
|
|
||||||
|
REACH | 415 | 440 | 465 | 490 | ||
|
 |
||||||
|
STACK | 602 | 610 | 610 | 619 | ||
|
|
||||||
|
SEAT TUBE LENGTH | 420 | 420 | 420 | 420 | ||
|
|
||||||
|
EFFECTIVE ST ANGLE | 76.0° | 76.0° | 76.0° | 76.0° | ||
|
|
||||||
|
HEAD TUBE LENGTH | 110 | 120 | 120 | 130 | ||
|
|
||||||
|
HEAD TUBE ANGLE | 63.0° | 63.0° | 63.0° | 63.0° | ||
|
|
||||||
|
CHAINSTAY LENGTH | 440 | 440 | 440 | 440 | ||
|
|
||||||
|
WHEELBASE | 1217 | 1247 | 1272 | 1301 | ||
|
|
||||||
|
BOTTOM BRACKET DROP | 5 | 5 | 5 | 5 | ||
|
|
||||||
|
ESTIMATED BB HEIGHT | 350 | 350 | 350 | 350 | ||
|
|
||||||
|
STAND OVER HEIGHT | 685 | 685 | 685 | 685 | ||
|
|
||||||
|
FORK OFFSET | 52 | 52 | 52 | 52 | ||
|
|
||||||
|
|
||||||
|

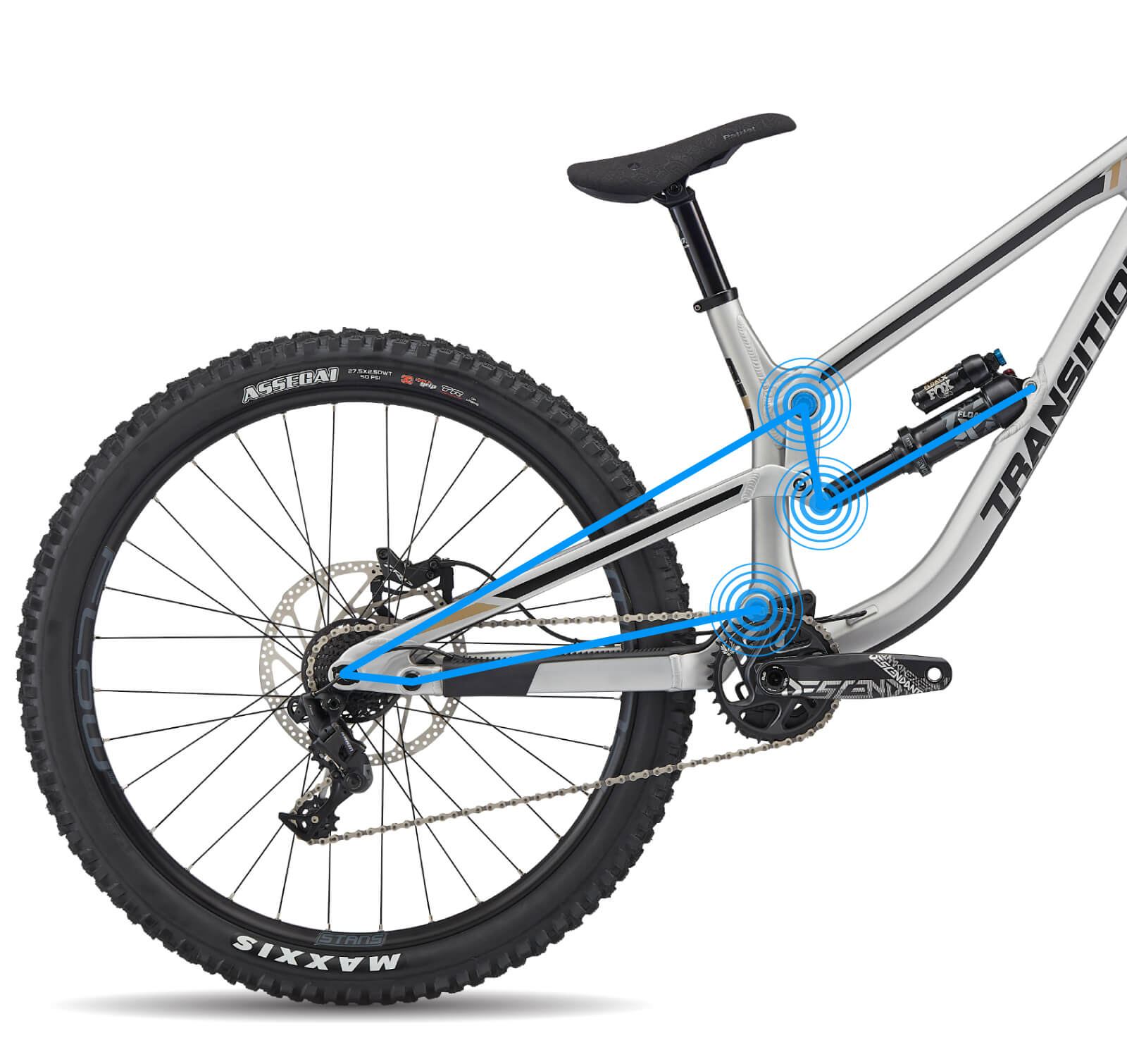

Gravity GiddyUp Suspension  Progressive by nature, low leverage and minimal pedal kick back, our Gravity GiddyUp Suspension provides fantastic performance in a simple package. We love how consistent the suspension feels and the ease of setup. Optimally optimized for descending your local shuttle laps, bike park or race track. Gravity Giddy Up 2.0hh is both forgiving and supportive at the same time. Whether you like to jump ramps, find side jibs or go flat out fast, the TR11 suspension has your back. | |
|
 |
 |
|
REACH ADJUST HEADSET All TR11 framesets and complete bikes include our custom 56mm zero stack reach adjust headset. We know that fine tuning the fit on your DH bike is super important to the overall handling and feel of the bike. Our headset includes a set of neutral 0mm cups as as well as offset cups to run +/- 5mm reach. TR11 frames include a decal on the headtube to make centering the cups a no brainer. The headset includes FSA sealed cartridge bearings, alloy crown race, custom top cover as well as our signature "Make A Party" top cap. |
|
|
| REAR TRAVEL: | 200mm |
 |
|
| FRONT TRAVEL: | 200mm |
|
|
| WHEEL SIZE: | 27.5" |
|
|
| SIZES: | SM, MD, LG, XL |
|
|
| COLORS: | Primer Blue, Black Chrome |
|
|
| FRAME BEARINGS: | 2x 6903, 4x 6802, 4x 6902 |
|
|
| FORK AXLE TO CROWN: | 581-586mm |
|
|
| FORK OFFSET: | 46-52mm |
|
|
| REAR SHOCK SIZE: | 250mm x 75mm *Any damage caused by the use of a different rear shock model or size outside of what Transition supplies with a frame-set or complete bike will not be covered under warranty. Please check clearance very carefully before riding any other model of rear shock and feel free to contact Transition with any shock fitment questions or concerns. |
|
|
| SHOCK HARDWARE: | 25mm x 8mm Top and Bottom |
|
|
| HEADSET (TOP): | 56mm Zero Stack |
|
|
| HEADSET (BOTTOM): | 56mm Zero Stack |
|
|
| BB SHELL: | 83mm BSA Threaded |
|
|
| CHAINLINE: | 56-58mm |
|
|
| REAR BRAKE MOUNT: | 160mm Post Mount |
|
|
| REAR AXLE: | Syntace X12 157, with a 1.0mm thread pitch |
|
|
| ISCG TABS: | ISCG05 |
|
|
| SEATPOST DIAMETER: | 31.6mm |
|
|
| SEAT CLAMP: | 37mm |
|
|
| MAX SEATPOST INSERTION: | 170mm |
|
|
| MAX CHAINRING SIZE: | 38T Single Ring |
|
|
| MAX TIRE SIZE: | 27.5 x 2.5 |
|
|
| REAR SHOCK SAG: | 19-25mm (25-33%) | |
|
