PRICE | $4,199 $3,499 USD ![]() |
$5,299 $3,699 USD ![]() |
$5,699 $3,978 USD ![]() |
$6,299 $4,599 USD ![]() |
$6,999 $4,899 USD ![]() |
$2,399 $1,999 USD ![]() |
$3,699 $3,199 USD ![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
COLOR OPTIONS |
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

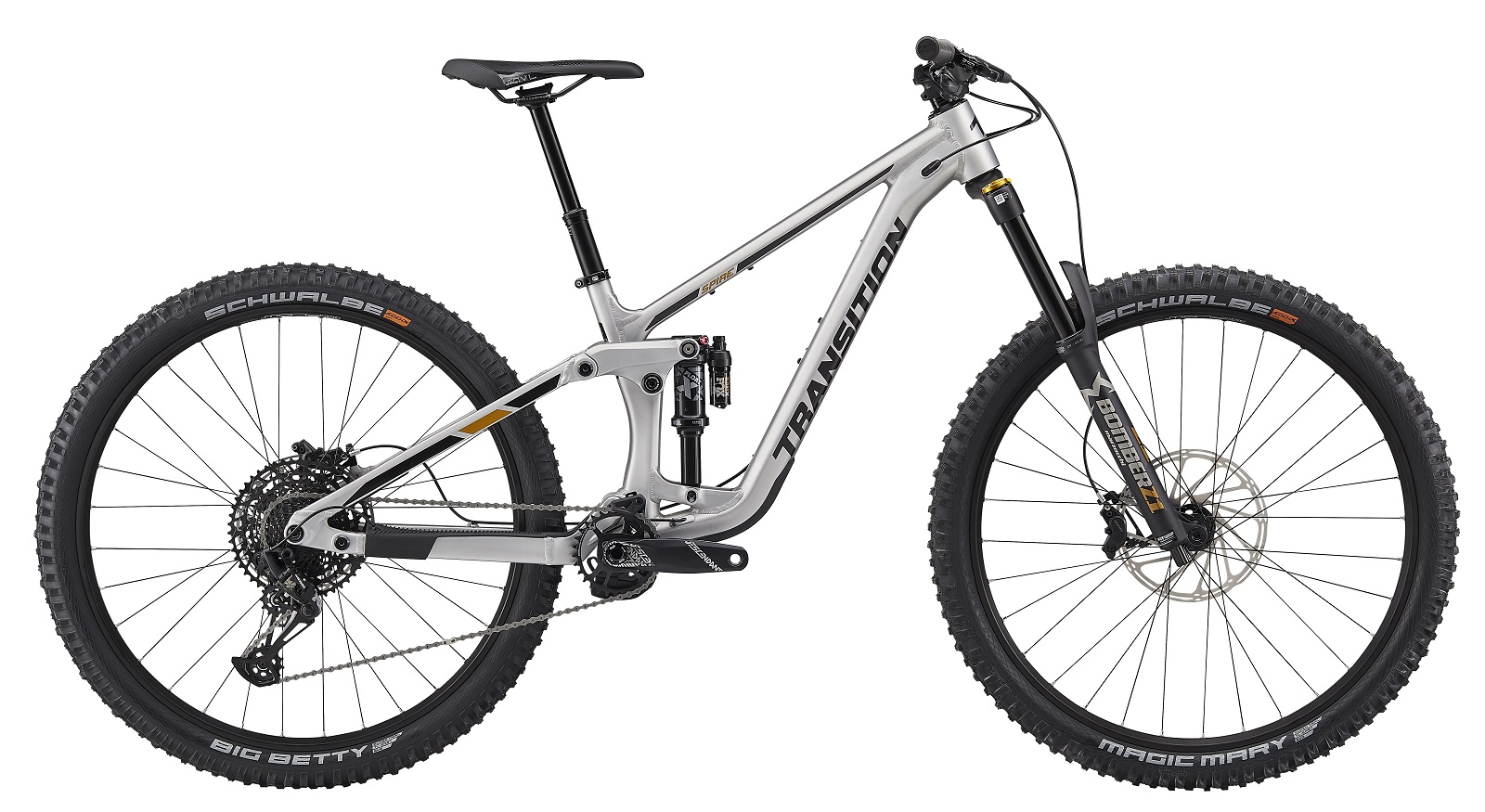

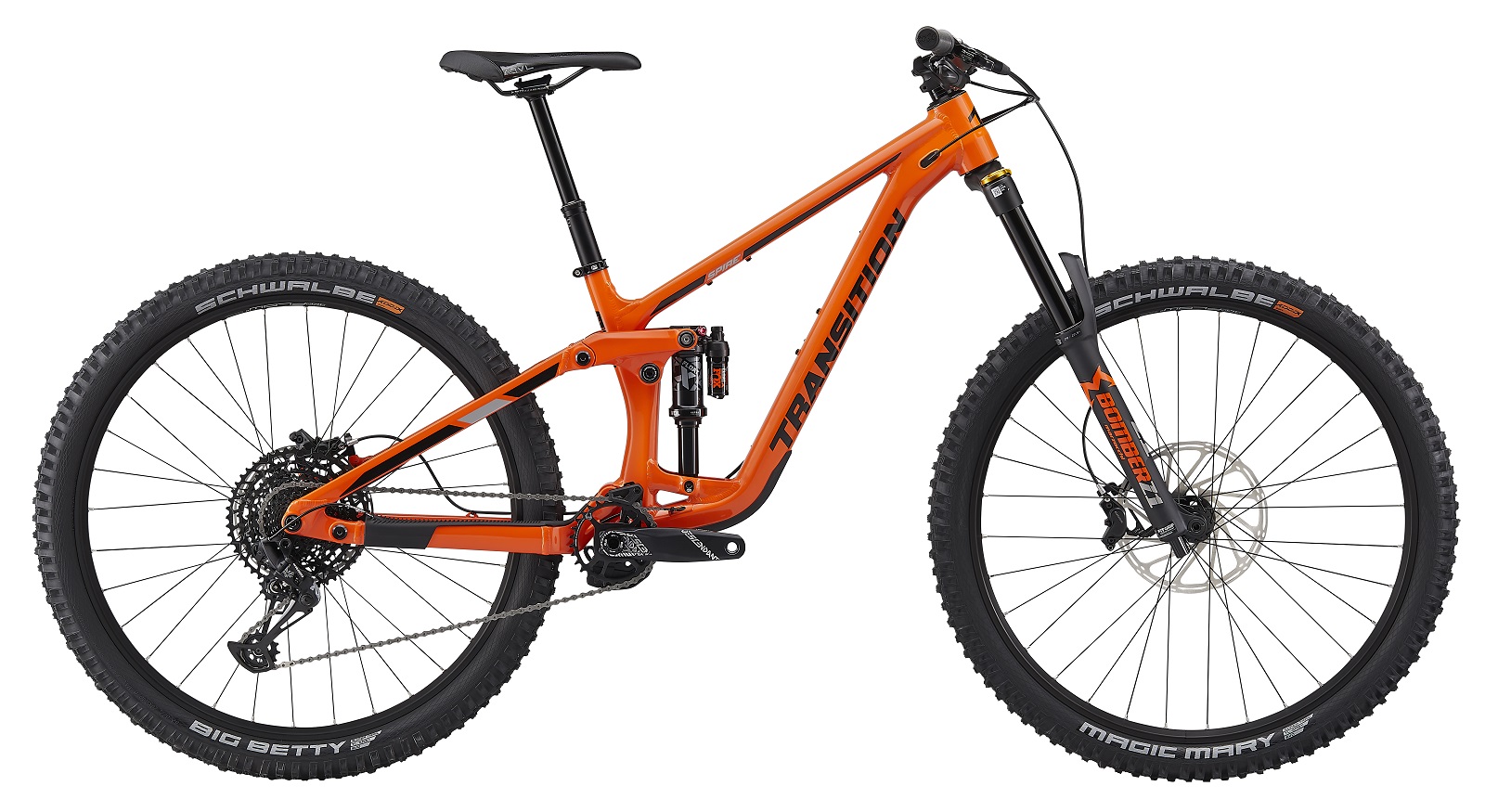

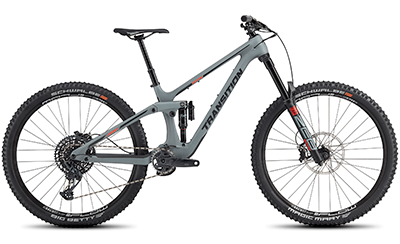

FRAME | Spire Alloy 170mm | Spire Alloy 170mm | Spire Alloy 170mm | Spire Carbon 170mm | Spire Carbon 170mm | Spire Alloy 170mm | Spire Carbon 170mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WHEEL SIZE | 29" | 29" | 29" | 29" | 29" | 29" | 29" | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
REAR SHOCK | Fox Float X Performance (205x65mm) |
RockShox Super Deluxe Ultimate B2 (205x65mm) |
Fox Float X2 Factory 2 Position (205x65mm) |
RockShox Super Deluxe Ultimate (205x65mm) Code includes B2 TRP includes C1 |
Fox Float X2 Factory 2 Position (205x65mm) |
Fox Float X2 Factory (205x65mm) |
Fox Float X2 Factory (205x65mm) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FORK | Marzocchi Bomber Z1 Air (170mm) |
RockShox ZEB Ultimate A1 (170mm) | Fox Float 38 Grip 2 Factory (170mm) | RockShox ZEB Ultimate (170mm) Code includes A1 TRP includes A2 |
Fox Float 38 Grip 2 Factory (170mm) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HEADSET | FSA NO.55R/57 | FSA NO.55R/57 | FSA NO.55R/57 | FSA NO.55R/57 | FSA NO.55R/57 | FSA NO.55R/57 (Included) |
FSA NO.55R/57 (Included) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
STEM | RaceFace Aeffect R (40mm) | ANVL Swage (40mm) | ANVL Swage (40mm) | ANVL Swage (40mm) | ANVL Swage (40mm) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HANDLEBAR | RaceFace Chester 35 SM (780x20) MD/LG/XL/XXL(780x35) |
ANVL Mandrel Alloy 35 SM(800x20) MD/LG/XL(800x30) XXL(800x40) |
ANVL Mandrel Alloy 35 SM(800x20) MD/LG/XL(800x30) XXL(800x40) |
ANVL Mandrel Alloy 35 SM(800x20) MD/LG/XL(800x30) XXL(800x40) |
ANVL Mandrel Alloy 35 SM(800x20) MD/LG/XL(800x30) XXL(800x40) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GRIPS | ODI Elite Flow | ODI Elite Flow | ODI Elite Flow | ODI Elite Flow | ODI Elite Flow | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SADDLE | SDG Bel Air 3 | ANVL Forge Cromo | ANVL Forge Cromo | ANVL Forge Cromo | ANVL Forge Cromo | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SEATPOST | OneUp Dropper Post | OneUp Dropper Post | OneUp Dropper Post | OneUp Dropper Post | OneUp Dropper Post | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BRAKES | SRAM Code R | SRAM Code RSC (Code) or TRP DH-R-Evo (TRP) |
Shimano XT M8120 | SRAM Code RSC or TRP DH-R Evo |
Shimano XT M8120 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROTORS | SRAM Centerline (220mm/200mm) | SRAM Centerline 220mm/200mm (Code) or TRP R1 2.3 223mm/203mm (TRP) |
Shimano RT86 203mm | SRAM Centerline 220mm/200mm or TRP R1 2.3 (203mm) |
Shimano RT86 203mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SHIFTER | SRAM NX Eagle MMX | SRAM GX Eagle | Shimano XT M8100 | SRAM GX Eagle | Shimano XT M8100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DERAILLEUR | SRAM NX Eagle | SRAM GX Eagle | Shimano XT M8100 | SRAM GX Eagle | Shimano XT M8100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CASSETTE | SRAM PG 1230 (11-50t) | SRAM XG 1275 (10-52t) | Shimano XT M8100 (10-51t) | SRAM XG 1275 (10-52t) | Shimano XT M8100 (10-51t) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CHAIN | SRAM NX Eagle | SRAM GX Eagle | Shimano XT M8100 | SRAM GX Eagle | Shimano XT M8100 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CRANK | SRAM Descendent 6K DUB (30t/165mm) |
SRAM GX Alloy DUB (30t/165mm) | Shimano XT M8100 (30t/165mm) | SRAM GX Alloy DUB (30t/165mm) | Shimano XT M8100 (30t/165mm) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CHAINGUIDE | OneUp Bash Guide | OneUp Bash Guide | OneUp Bash Guide | OneUp Bash Guide | OneUp Bash Guide | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RIMS | WTB ST i30 | Stans Flow S1 | DT Swiss EX 1700 Spline30 | Stans Flow S1 | DT Swiss EX 1700 Spline30 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SPOKES | Pillar Double Butted | Sapim Race Double Butted | DT Swiss Competition | Sapim Race Double Butted | DT Swiss Competition | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HUBS | Novatec D791SB-B15/D902SB-B12 | Stans Neo Durasync | DT Swiss 350 Straight Pull 36SL | Stans Neo Durasync | DT Swiss 350 Straight Pull 36SL | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TIRE/FRONT | Schwalbe Magic Mary, Super Trail, Soft (2.4) | Schwalbe Magic Mary, Super Trail, Soft (2.4) | Schwalbe Magic Mary, Super Trail, Soft (2.4) | Schwalbe Magic Mary, Super Trail, Soft (2.4) | Schwalbe Magic Mary, Super Trail, Soft (2.4) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TIRE/REAR | Schwalbe Big Betty, Super Trail, Soft (2.4) | Schwalbe Big Betty, Super Trail, Soft (2.4) | Schwalbe Big Betty, Super Trail, Soft (2.4) | Schwalbe Big Betty, Super Trail, Soft (2.4) | Schwalbe Big Betty, Super Trail, Soft (2.4) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
INCLUDED | Tubeless Valves & Sealant | Tubeless Valves & Sealant | Tubeless Valves & Sealant | Tubeless Valves & Sealant | Tubeless Valves & Sealant | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WEIGHT | 36.7 lbs / 16.65 kg (Size MD) | 36.3 lbs / 16.46 kg (Size MD) | 36.8 lbs / 16.92 kg (Size MD) | 33.3 lbs / 15.1 kg (Size MD) | 33.8 lbs / 15.33 kg (Size MD) | 10.6 lbs / 4.81 kg (Size MD w/ Shock) | 7.6 lbs / 3.45 kg (Size MD w/ Shock) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specs are subject to change at any time. All complete bikes are 95% assembled and packaged for quick and easy final assembly, and as such, Transition Bikes is not able to make special request build spec changes or modifications to packaging. |
![]() |
![]() |
Speed Balanced Geometry ![]() SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider. ![]() |
||||||
![]() |
SM HIGH/LOW |
MD HIGH/LOW |
LG HIGH/LOW |
XL HIGH/LOW |
XXL HIGH/LOW |
![]() |
|
![]() |
![]() | ||||||
![]() |
A. REACH | 430 / 425 | 460 / 455 | 485 / 480 | 510 / 505 | 535 / 530 | |
![]() |
![]() |
||||||
![]() |
B. STACK | 619 / 624 | 619 /624 | 628 / 633 | 637 / 642 | 646 / 651 | |
![]() |
![]() |
||||||
![]() |
C. EFFECTIVE TT LENGTH | 547 / 550 | 577 / 580 | 605 / 608 | 633 / 636 | 661 / 664 | |
![]() |
![]() |
||||||
![]() |
D. SEAT TUBE LENGTH | 360 | 390 | 430 | 460 | 490 | |
![]() |
![]() |
||||||
![]() |
E. EFFECTIVE ST ANGLE | 79.6° / 79.1° | 78.8° / 78.3° | 78.1° / 77.6° | 77.5° / 77° | 77.2° / 76.7° | |
![]() |
![]() |
||||||
![]() |
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 600 | 660 | 720 | 780 | 820 | |
![]() |
![]() |
||||||
![]() |
ACTUAL ST ANGLE | 70.5° / 70° | 70.5° / 70° | 70.5° / 70° | 70.5° / 70° | 70.5° / 70° | |
![]() |
![]() |
||||||
![]() |
SEAT TUBE OFFSET AT BB | 100 | 100 | 100 | 100 | 100 | |
![]() |
![]() |
||||||
![]() |
F. HEAD TUBE LENGTH | 100 | 100 | 110 | 120 | 130 | |
![]() |
![]() |
||||||
![]() |
G. HEAD TUBE ANGLE | 63° / 62.5° | 63° / 62.5° | 63° / 62.5° | 63° / 62.5° | 63° / 62.5° | |
![]() |
![]() |
||||||
![]() |
H. CHAINSTAY LENGTH | 446 / 448 | 446 / 448 | 446 / 448 | 452 / 454 | 452 / 454 | |
![]() |
![]() |
||||||
![]() |
I. WHEELBASE | 1227 / 1229 | 1257 / 1259 | 1287 / 1289 | 1322 / 1324 | 1352 / 1354 | |
![]() |
![]() |
||||||
![]() |
J. BOTTOM BRACKET DROP | 25 / 32 | 25 / 32 | 25 / 32 | 25 / 32 | 25 / 32 | |
![]() |
![]() |
||||||
![]() |
K. ESTIMATED BB HEIGHT | 350 / 343 | 350 / 343 | 350 / 343 | 350 / 343 | 350 / 343 | |
![]() |
![]() |
||||||
![]() |
L. STAND OVER HEIGHT | 685 / 680 | 700 / 695 | 715 / 710 | 730 / 725 | 745 / 740 | |
![]() |
![]() |
||||||
![]() |
M. FORK OFFSET | 44 | 44 | 44 | 44 | 44 | |
![]() |
![]() |
||||||
![]() |
![]() |
REAR TRAVEL: |   170mm (Compatible with 160mm) | ||
![]() |
|||
FRONT TRAVEL: |   170mm (Compatible with 180mm single crown fork or dual crown forks) | ||
![]() |
|||
WHEEL SIZE: |   29" | ||
![]() |
|||
SIZES: |   SM, MD, LG, XL, XXL | ||
![]() |
|||
COLORS: |   Carbon: Huckleberry, Primer Gray   Alloy:   Factory Orange, Raw | ||
![]() |
|||
FRAME BEARINGS: |   2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900 | ||
![]() |
|||
FORK AXLE TO CROWN: |   584mm | ||
![]() |
|||
FORK OFFSET: |   44mm | ||
![]() |
|||
REAR SHOCK SIZE: |   205mm x 65mm (Compatible with 205mm x 60mm) | ||
![]() |
|||
SHOCK HARDWARE: |   Trunnion Mount Top / 30mm x 8mm Bottom | ||
![]() |
|||
HEADSET (TOP): |   56mm Zero Stack | ||
![]() |
|||
HEADSET (BOTTOM): |   56mm Zero Stack | ||
![]() |
|||
BB SHELL: |   73mm BSA Threaded | ||
![]() |
|||
CHAINLINE: |   52mm | ||
![]() |
|||
REAR BRAKE MOUNT: |   180mm Post Mount, Max Rotor Size 223mm | ||
![]() |
|||
DERAILLEUR HANGER: |   SRAM UDH | ||
![]() |
|||
REAR AXLE: |   Transition Axle For UDH, 12mm x 148mm Spacing | ||
![]() |
|||
ISCG TABS: |   ISCG05 | ||
![]() |
|||
SEATPOST DIAMETER: |   31.6mm | ||
![]() |
|||
SEAT CLAMP: |   Carbon: 37.0mm   Alloy: 34.9mm | ![]() |
|
MAX SEATPOST INSERTION: |   Carbon: Small 200mm | Medium 230mm | Large 260mm | XL 280mm | XXL 300mm   Alloy: Small 200mm | Medium 230mm | Large 270mm | XL 300mm | XXL 330mm | ||
![]() |
|||
MAX CHAINRING SIZE: |   34T Standard Single Ring (Based on 52mm Boost Chainline) | ||
![]() |
|||
MAX TIRE SIZE: |   29 x 2.6 | ||
![]() |
![]() |
||
REAR SHOCK SAG: |   170mm/65mm: 18-22mm (28-34%)   160mm/60mm: 16-20mm (27-33%) |
