PRICE | $5,299 $3,499 USD ![]() |
|||||||
COLOR OPTIONS |
|
|||||||

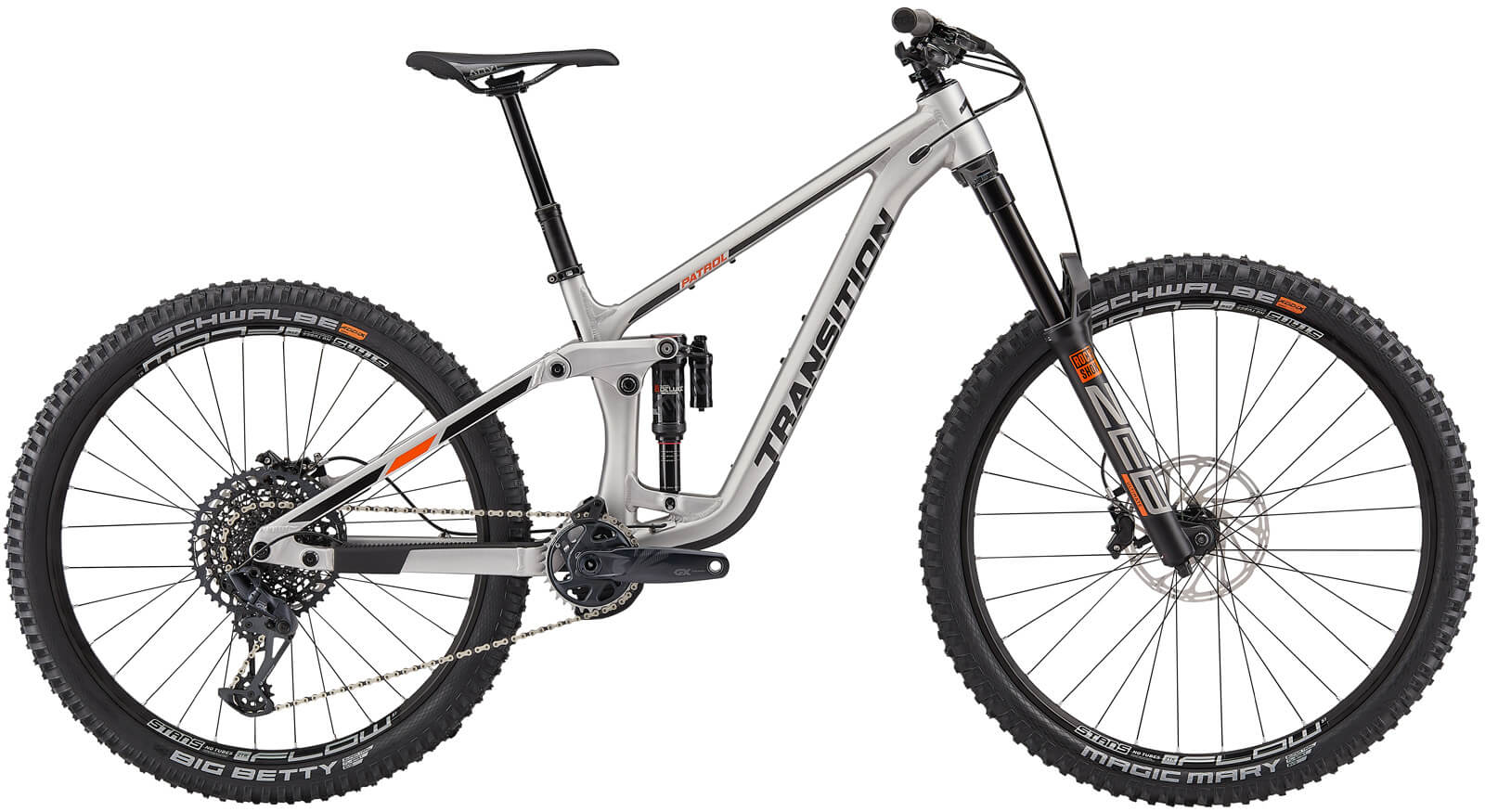

FRAME | Patrol Alloy 160mm | |||||||
WHEEL SIZE | Mixed | |||||||
REAR SHOCK | RockShox Super Deluxe Ultimate Air (205x60) |
|||||||
FORK | RockShox ZEB Ultimate (160mm) | |||||||
HEADSET | FSA NO.55R/57 | |||||||
STEM | ANVL Swage (40mm) | |||||||
HANDLEBAR | ANVL Mandrel Alloy 35 SM(800x20) MD/LG/XL(800x30) |
|||||||
GRIPS | ODI Elite Flow | |||||||
SADDLE | ANVL Forge Cromo | |||||||
SEATPOST | OneUp Dropper Post | |||||||
BRAKES | TRP DH-R Evo or SRAM Code RSC |
|||||||
ROTORS | TRP R1 2.3 (203mm) or SRAM Centerline (200mm) |
|||||||
SHIFTER | SRAM GX Eagle | |||||||
DERAILLEUR | SRAM GX Eagle | |||||||
CASSETTE | SRAM XG 1275 (10-52t) | |||||||
CHAIN | SRAM GX Eagle | |||||||
CRANK | SRAM GX Alloy DUB (32t/165mm) |
|||||||
CHAINGUIDE | OneUp Bash Guide | |||||||
RIMS | Stans Flow S1 | |||||||
SPOKES | Sapim Race Double Butted | |||||||
HUBS | Stans Neo Durasync | |||||||
TIRE/FRONT | Schwalbe Magic Mary, Super Trail, Soft (2.4) | |||||||
TIRE/REAR | Schwalbe Big Betty, Super Trail, Soft (2.4) | |||||||
INCLUDED | Tubeless Valves & Sealant | |||||||
WEIGHT | 34.1 lbs / 15.47 kg (Size MD) | |||||||
Specs are subject to change at any time. All complete bikes are 95% assembled and packaged for quick and easy final assembly, and as such, Transition Bikes is not able to make special request build spec changes or modifications to packaging. |
![]() |
![]() |
Speed Balanced Geometry ![]() SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider. ![]() |
||||||
![]() |
SM HIGH/LOW |
MD HIGH/LOW |
LG HIGH/LOW |
XL HIGH/LOW |
![]() |
||
![]() |
![]() | ||||||
![]() |
A. REACH | 420 / 415 | 455 / 450 | 480 / 475 | 510 / 505 | ||
![]() |
![]() |
||||||
![]() |
B. STACK | 623 / 628 | 623 /628 | 632 / 637 | 641 / 646 | ||
![]() |
![]() |
||||||
![]() |
C. EFFECTIVE TT LENGTH | 540 / 543 | 575 / 578 | 603 / 606 | 636 / 639 | ||
![]() |
![]() |
||||||
![]() |
D. SEAT TUBE LENGTH | 360 | 390 | 430 | 460 | ||
![]() |
![]() |
||||||
![]() |
E. EFFECTIVE ST ANGLE | 79.6° / 79.1° | 78.8° / 78.3° | 78.1° / 77.6° | 77.5° / 77° | ||
![]() |
![]() |
||||||
![]() |
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 600 | 660 | 720 | 780 | ||
![]() |
![]() |
||||||
![]() |
ACTUAL ST ANGLE | 70.5° / 70° | 70.5° / 70° | 70.5° / 70° | 70.5° / 70° | ||
![]() |
![]() |
||||||
![]() |
SEAT TUBE OFFSET AT BB | 100 | 100 | 100 | 100 | ||
![]() |
![]() |
||||||
![]() |
F. HEAD TUBE LENGTH | 100 | 100 | 110 | 120 | ||
![]() |
![]() |
||||||
![]() |
G. HEAD TUBE ANGLE | 63.5° / 63° | 63.5° / 63° | 63.5° / 63° | 63.5° / 63° | ||
![]() |
![]() |
||||||
![]() |
H. CHAINSTAY LENGTH | 434 / 436 | 434 / 436 | 440 / 442 | 440 / 442 | ||
![]() |
![]() |
||||||
![]() |
I. WHEELBASE | 1196 / 1198 | 1231 / 1233 | 1266 / 1268 | 1301 / 1303 | ||
![]() |
![]() |
||||||
![]() |
J. BOTTOM BRACKET DROP | 15 / 22 | 15 / 22 | 15 / 22 | 15 / 22 | ||
![]() |
![]() |
||||||
![]() |
K. ESTIMATED BB HEIGHT | 340 / 333 | 340 / 333 | 340 / 333 | 340 / 333 | ||
![]() |
![]() |
||||||
![]() |
L. STAND OVER HEIGHT | 675 / 685 | 690 / 700 | 705 / 715 | 720 / 730 | ||
![]() |
![]() |
||||||
![]() |
M. FORK OFFSET | 44 | 44 | 44 | 44 | ||
![]() |
![]() |
||||||
![]() |
![]() |
REAR TRAVEL: | 160mm (Compatible with 170mm) | ||
![]() |
|||
FRONT TRAVEL: | 160mm (Compatible with 170mm single crown fork or dual crown forks) | ||
![]() |
|||
WHEEL SIZE: | 29" Front / 27.5" Rear | ||
![]() |
|||
SIZES: | SM, MD, LG, XL | ||
![]() |
|||
COLORS: | Carbon: Moonshadow, Bonfire Red Alloy: Blueberry, Raw, Moonshadow, Bonfire Red | ![]() |
|
FRAME BEARINGS: | 2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900 | ||
![]() |
|||
FORK AXLE TO CROWN: | 574mm at 160mm | ||
![]() |
|||
FORK OFFSET: | 44mm | ||
![]() |
|||
REAR SHOCK SIZE: | 205mm x 60mm (Compatible with 205mm x 65mm) | ||
![]() |
|||
SHOCK HARDWARE: | Trunnion Mount Top / 30mm x 8mm Bottom | ||
![]() |
|||
HEADSET (TOP): | 56mm Zero Stack | ||
![]() |
|||
HEADSET (BOTTOM): | 56mm Zero Stack | ||
![]() |
|||
BB SHELL: | 73mm BSA Threaded | ||
![]() |
|||
CHAINLINE: | 52mm | ||
![]() |
|||
REAR BRAKE MOUNT: | 180mm Post Mount, Max Rotor Size 223mm | ||
![]() |
|||
DERAILLEUR HANGER: | SRAM UDH | ||
![]() |
|||
REAR AXLE: | Transition Axle For UDH, 12mm x 148mm Spacing | ||
![]() |
|||
ISCG TABS: | ISCG05 | ||
![]() |
|||
SEATPOST DIAMETER: | 31.6mm | ![]() |
|
SEAT CLAMP: | Carbon: 37.0mm Alloy: 34.9mm | ![]() |
|
MAX SEATPOST | Carbon: Small 220mm | Medium 250mm | Large 290mm | XL 320mm Alloy: Small 200mm | Medium 230mm | Large 270mm | XL 300mm | ||
![]() |
|||
MAX CHAINRING SIZE: | 34T Standard Single Ring (Based on 52mm Boost Chainline) | ||
![]() |
|||
MAX TIRE SIZE: | 27.5 x 2.6 | ||
![]() |
![]() |
||
REAR SHOCK SAG: | 160mm/60mm: 16-20mm (27-33%) 170mm/65mm: 18-22mm (28-34%) |
