You may view the exploded frame detail and purchase replacement parts for your frame below. To verify you have the correct frame, please make sure your serial number has the same first 7 characters listed below.
APPLICABLE SERIAL NUMBER RANGES: TBC4302xxx, TBC4303xxx, TBC4304xxx, TBC4305xxx, TBC4306xxx, TBC4307xxx, TBC4308xxx, TBC4309xxx, TBC4310xxx,
Item Added To Your Cart
REF #
DESCRIPTION PART # Torque Specs Other Notes
# IN FRAME
STOCK LEVEL
PURCHASE QTY
ADD TO CART
PRICE/EA
0
MAX Bearing Kit: (2018-2023 Trunnion Shock Models) - Includes All Bearings P/N: 01.18.91.6840
1
All Available
$90.00
5
Main Pivot Spacer 17mm x 33mm (TSC-BSP) - Each P/N: 01.18.92.0204
1
All Available
$6.00
6
MAX Bearing: (6903) - Each P/N: 01.17.91.6903
2
All Available
$9.99
7
Main Pivot Axle 17mm x 74mm (TSC-MAX) - Each P/N: 01.18.92.0201
19nm
1
All Available
$18.00
8
Main Pivot Taper Nut (A6DA-CCP) - Each P/N: 01.18.92.0205
1
All Available
$6.00
9
Main Pivot Screw (M6-25L-P-S) - Each P/N: 01.18.92.0202
10nm
1
All Available
$1.50
10
Main Pivot Spacer (6x10x1T) - Each P/N: 01.18.92.0203
1
All Available
$0.50
11
Bearing Spacer 15mm x 22mm x 3mm (TEDC-BWS) - Each P/N: 01.18.92.0004
2
All Available
$3.00
12
MAX Bearing: (6902) - Each P/N: 01.17.91.6902
2
All Available
$7.00
13
Rocker Pivot Axle 15mm x 76mm (TSFA-LAX) - Each P/N: 01.18.92.0302
1
All Available
$15.00
14
Rocker Pivot Axle Cap (TSFA-LNT-1) - Each P/N: 01.18.92.0303
1
All Available
$4.00
15
Rocker Pivot Screw (M8-16L-M) - Each P/N: 01.18.92.0304
10nm
1
All Available
$1.50
16
MAX Bearing: (6802) - Each P/N: 01.17.91.6802
4
All Available
$7.00
17
Bearing Spacer 15mm x 19mm x 2mm (ASEE-LWS) - Each P/N: 01.18.92.0002
6
All Available
$3.00
18
Chainstay Pivot Axle 15mm x 26mm V2 (TRB-CAX-26L) - Each P/N: 01.19.92.0101
2
All Available
$10.00
19
Chainstay Pivot Screw 12mm x 15mm V2 (TRB-SNT-15L) - Each P/N: 01.19.92.0102
10nm
2
All Available
$10.00
20
MAX Bearing: (3802) - Each P/N: 01.17.91.3802
2
All Available
$14.00
21
Bearing Spacer 15mm x 19mm x 2.5mm (TSFA-LWS) - Each P/N: 01.18.92.0003
4
All Available
$3.00
22
Seatstay Pivot Axle 15mm x 22.5mm (TSFA-SAX) - Each P/N: 01.18.92.0401
19nm
2
All Available
$10.00
23
Transition Derailleur Hanger (TSFA-HG-B) - Each P/N: 01.20.93.0001
1
All Available
$25.00
24
Derailleur Hanger Retention Bolt V2 (TRB-ANT) - Each P/N: 01.19.93.0002
19nm
1
All Available
$10.00
25
37mm Bolt On Seatpost Collar (TRA-CLP) - Includes Screw P/N: 01.19.16.3700
5-7nm
1
Out of Stock
$15.00
26
Shock Bolt 8mm x 41mm V2 (TRB-BT-41L-S) - Each P/N: 01.19.92.0500
10nm
1
All Available
$10.00
27
Shock Screw V2 (TRB-M6-S) - Each P/N: 01.19.92.0505
10nm (Apply Blue Threadlock)
1
All Available
$5.00
29
Cable Holder: 4mm Left (TSC-CPA-L) P/N: 01.18.92.0602
3
All Available
$4.00
30
Cable Holder: 4mm Right (TSC-CPA-R) P/N: 01.18.92.0601
3
All Available
$4.00
31
Cable Holder: 5mm Right (TSC-CPB-R) P/N: 01.18.92.0603
1
All Available
$4.00
32
Cable Holder: 5mm Left (TSC-CPB-L) P/N: 01.18.92.0604
Trunnion Shock Bolt Washer V2 (TSCF-SCP) - Each P/N: 01.19.92.0508
2
All Available
$5.00
37
Trunnion Shock Bolt V2 10mm x 24mm (TSC-TRC-24L) - Each P/N: 01.19.92.0506
12nm
2
All Available
$10.00
38
Trunnion Shock Spacer 10mm x 6mm (TSC-SWS) - Each P/N: 01.18.92.0005
2
All Available
$2.50
Click the link below to download a vector PDF file of your bikes graphics:

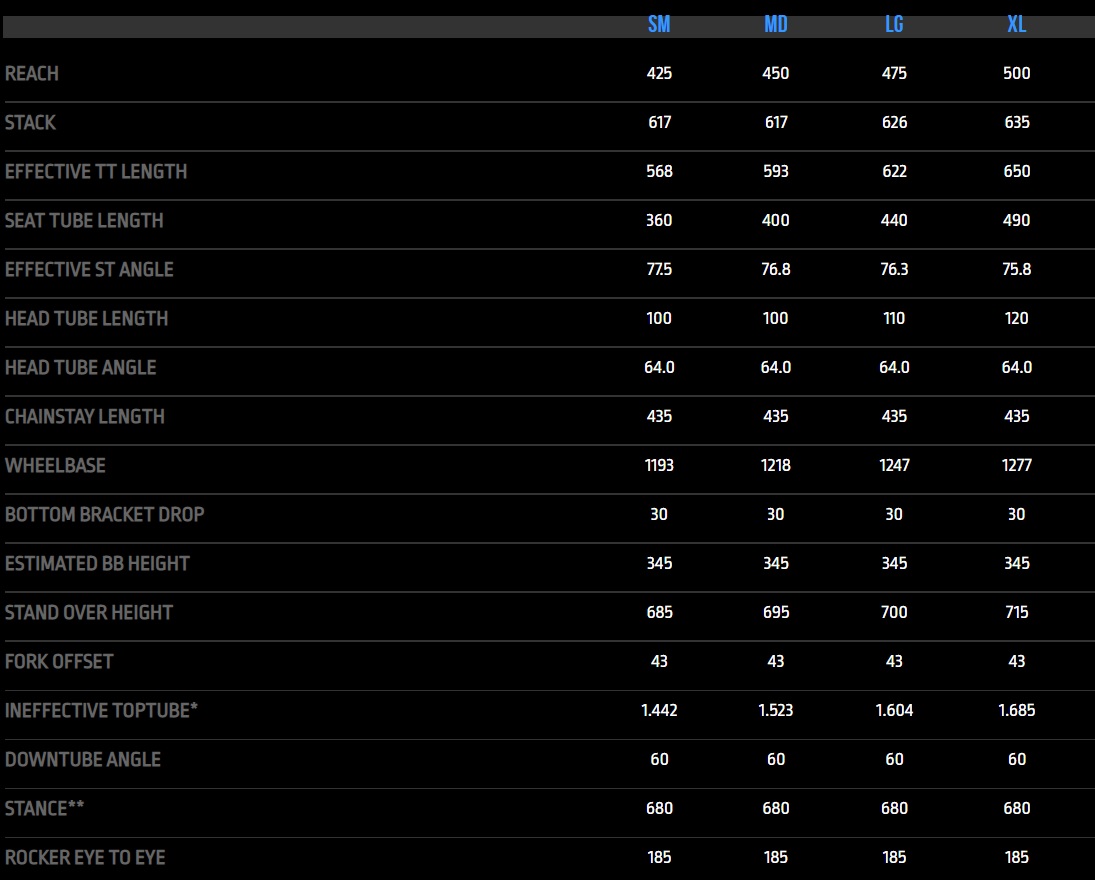

REAR TRAVEL:
140mm
FRONT TRAVEL:
160mm
WHEEL SIZE:
29"
SIZES:
SM, MD, LG, XL, XXL (Alloy Only)
COLORS:
Pinot Noir, Gunmetal Gray, TR Blue, Black Powder
FRAME BEARINGS:
2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900
FORK AXLE TO CROWN:
571mm
FORK OFFSET:
42mm (Rockshox) | 44mm (Fox)
REAR SHOCK SIZE:
205mm x 57.5mm
SHOCK HARDWARE:
Trunnion Mount Top / 25mm x 8mm Bottom
HEADSET (TOP):
44mm Zero Stack
HEADSET (BOTTOM):
56mm Zero Stack
BB SHELL:
73mm BSA Threaded
REAR BRAKE MOUNT:
180mm Post Mount
REAR AXLE:
Syntace X12 148, with a 1.0mm thread pitch
ISCG TABS:
ISCG05
SEATPOST DIAMETER:
31.6mm
SEAT CLAMP:
Alloy | 34.9mm
Carbon | 37mm
MAX SEATPOST INSERTION:
Alloy | Small 140mm, Medium 185mm, Large 225mm, XL 270mm, XXL 290mm
Carbon | Small 190mm, Medium 225mm, Large 245mm, XL 245mm
MAX CHAINRING SIZE:
34T Single Ring
MAX TIRE SIZE:
29 x 2.5
AIR SHOCK SAG:
18-20mm (32-35%)
MAX PSI FOX DPX2:
300 PSI
WARRANTY POLICY
At Transition Bikes, we take pride in the quality of our products. Our frames are manufactured to withstand the rigors and abuse modern mountain bike trails can dish out. That said, anything can break given just the right amount of time, wear, or misfortune. Everyone here at Transition Bikes is committed to keeping you riding and we realize every warranty and or crash replacement situation is unique. You have our guarantee that we will do our best to make sure we keep you riding while limiting any downtime.
Models manufactured between 2018 and 2020 (with the exception of the SBG Carbon Scout) are covered for 3 years from the original date of purchase against manufacturing defects. This policy applies to original owners only.
You must register your frame on our site with your serial number and provide proof of purchase to qualify for a warranty. In the event of an issue with your frame Transition Bikes will determine whether it qualifies as a ‘Warranty Issue’ or is covered under our ‘Crash Replacement Policy’ (see below for details).
In the event that you have to send back all or part of your frame under warranty, you are responsible for the shipping costs to get it to us and we will pay the return shipping.
*Our warranty policy does not cover:
Any labor costs associated to the warranty claim.
Modifications from stock configuration.
Normal wear-and-tear damage.
Paint damage caused by the removal of protective tapes or adhesives.
CRASH REPLACEMENT
In addition to our warranty, all Transition Bikes frames are covered for life under our "Crash Replacement Policy" to the original or second-hand owner. If for any reason you should find yourself with a damaged frame, you may send us the broken frame section and we will replace it for the best possible price we can, assuming we have the replacement part available. If we do not have the piece available we will attempt to work out a crash replacement price on a replacement frameset. The customer is responsible for all shipping costs to get the frame to and from Transition Bikes.
WE GET IT - PEOPLE WHO RIDE OUR BIKES RIDE HARD
Above is our official stance, since to some degree these things need to be spelled out. But our entire philosophy is based around being a rider-owned company, and we take that seriously. We're well aware that not every circumstance can be accounted for and not every case falls neatly into one of the above categories. We look at every warranty and crash replacement case with a fresh lens and treat every situation in the manner in which we would expect it to be handled. Our goal is to leave no rider who supports us without support in return.
WARRANTY/CRASH REPLACEMENT CLAIM FORM
To submit a Warranty/Crash Replacement Claim within the United States or Canada, you must have an account with us. To sign in to your existing account or create a new account, follow this link. Once you are signed in, click on Warranty Claims to submit a claim.
Our International Distributors handle warranty cases outside of the United States and Canada. Please contact your region's distributor to get a claim started.
If you have any other questions regarding our warranty or crash replacement policies, please email us at warranty@transitionbikes.com or call us by phone, at (360) 366-4960, extension 3.
Can I try a bike before I buy?
We offer three ways to demo a bike. If you find yourself in Bellingham, you can follow this link to schedule a demo through the Outpost. If you live somewhere else, you can follow this link to see what shops currently have demo bikes available. And finally, you can view our events page, located here to see which upcoming demo events we'll be participating in.
I want to replace all of my pivot bearings, is there a bearing kit?
This bike uses the Enduro MAX Bearing Kit For Trunnion Mount Frames (2018-2023) - Part Number 01.18.91.6840
I want to run a coil shock, do you have a spring rate recommendation?
We do not have a spring rate chart or recommendation for this model. Please reach out to the shock manufacturer or use the spring rate calculator here.
Will installing frame protection affect the warranty?
Installing frame protection will not affect your warranty, but we do caution against installing it on neon or brightly-colored models as these paints are more susceptible to discoloration and fading. Paint fade is not covered under our factory warranty.
