|Misty Green||Raw Alloy|
|FRAME||TR11 Alloy 200mm||TR11 Alloy 200mm|
|REAR SHOCK||Fox Float X Performance Elite
|Fox Float X Performance Elite
|FORK||Fox 40 Performance 29"
(203mm Travel/44mm Offset)
|HEADSET||Transition Reach Adjust||Transition Reach Adjust|
|STEM||ANVL Direct Mount (40mm)|
|HANDLEBAR||ANVL Mandrel Alloy 35
SM/MD (800x30) LG/XL (800x40)
|GRIPS||ODI Elite Flow Lock-On|
|SADDLE||SDG Patriot I-Beam|
|BRAKES||TRP DH-R EVO|
|ROTORS||TRP R1 2.3 (223mm)|
|SHIFTER||SRAM GX DH|
|DERAILLEUR||SRAM GX DH|
|CASSETTE||SRAM PG 720 (11-25t)|
|CHAIN||SRAM PC 1130|
|CHAINGUIDE||OneUp Bash Guide|
|CRANK||SRAM Descendent Alloy DH DUB
|RIMS||Stans Flow S2|
|SPOKES||Pillar Straight Guage|
|TIRE/FRONT||Maxxis Assegai 3C DH (29x2.5)|
|TIRE/REAR||Maxxis Assegai 3C DH (27.5x2.5)|
|OTHER||Tubeless Valves & Sealant|
|WEIGHT||Complete Bike: 37.8 lbs / 17.16 kg (Size MD)||Medium Frame (With Shock): 10.27 lbs / 4.7 kg (Size MD)|
|Specs are subject to change at any time.|
Geometry That Goes To 11
After proving itself on the World Cup circuit as one of the top DH bikes on the market, the all-new TR11 is back with a full geometry refresh. Our goal was simple, a more balanced rider position to improve front-wheel traction and provide more control when trails turn nasty. The new TR11 has longer chainstays, increased reach and a slightly higher bottom bracket to put the rider in the perfect attack position.
|C. SEAT TUBE LENGTH||400||400||400||400|
|D. EFFECTIVE ST ANGLE||76.0°||76.0°||76.0°||76.0°|
|E. HEAD TUBE LENGTH||100||100||110||110|
|F. HEAD TUBE ANGLE||62.0°||62.0°||62.0°||62.0°|
|G. CHAINSTAY LENGTH||440/445||440/445||445/450||445/450|
|I. BOTTOM BRACKET DROP||3||3||3||3|
|J. ESTIMATED BB HEIGHT||352||352||352||352|
|K. FORK OFFSET||47||47||47||47|
Simplified Cable Routing
The TR11 now has a cable routing port in the front of the headtube which routes the rear derailleur and brake cables together and accommodates the rear brake lever being used on either side of the handlebar. Keeping the cockpit clean and tidy.
Straight 56mm Headtube
The straight 56mm headtube uses our TR11 adjustable headset cups which provides riders even more fine tuning options.
The SM and MD share a 440/445mm adjustable chainstay, and LG and XL share a 445/450 adjustable chainstay to keep the bike balanced throughout the size range.
148 Boost Axle
The rear hub spacing is now boost 148mm, which provides some extra wiggle room through tight sections of trail as well as the ability to share a rear wheel with a trail bike. The BB shell spacing remains standard DH 83mm which provides optimal chainline with DH specific 7 speed cassettes.
The complete bike spec was chosen to balance performance and value. We wanted to make the bike ready to rip right out of the box and not leave customers feeling like they need to upgrade parts. Stock MD complete bike weight 37.8 lbs / 17.16kg.
The TR11 is available in four sizes, but we have increased the reach length difference between each size to accommodate even shorter, and taller riders.
These integrated bumpers make sure your frame and fork are protected at all times so you don't need to worry about the stanchion mounted bumpers being in the wrong place.
The DH capable Float X shock performs incredibly well and is super easy to achieve the exact spring rate you need without needing to source a different rate coil spring. It has all the adjustment you need in a package that's easy to fine tune and not worry about an excess amount of adjustments.

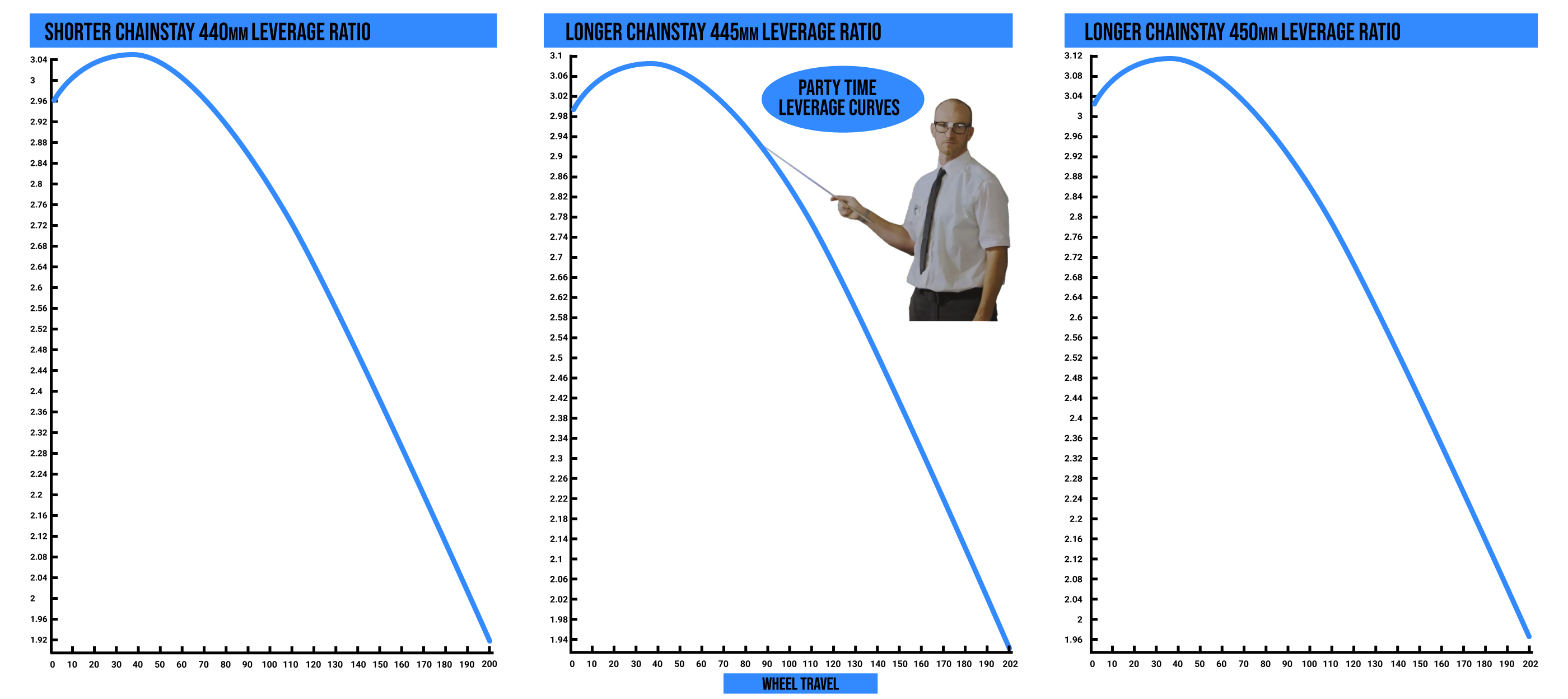

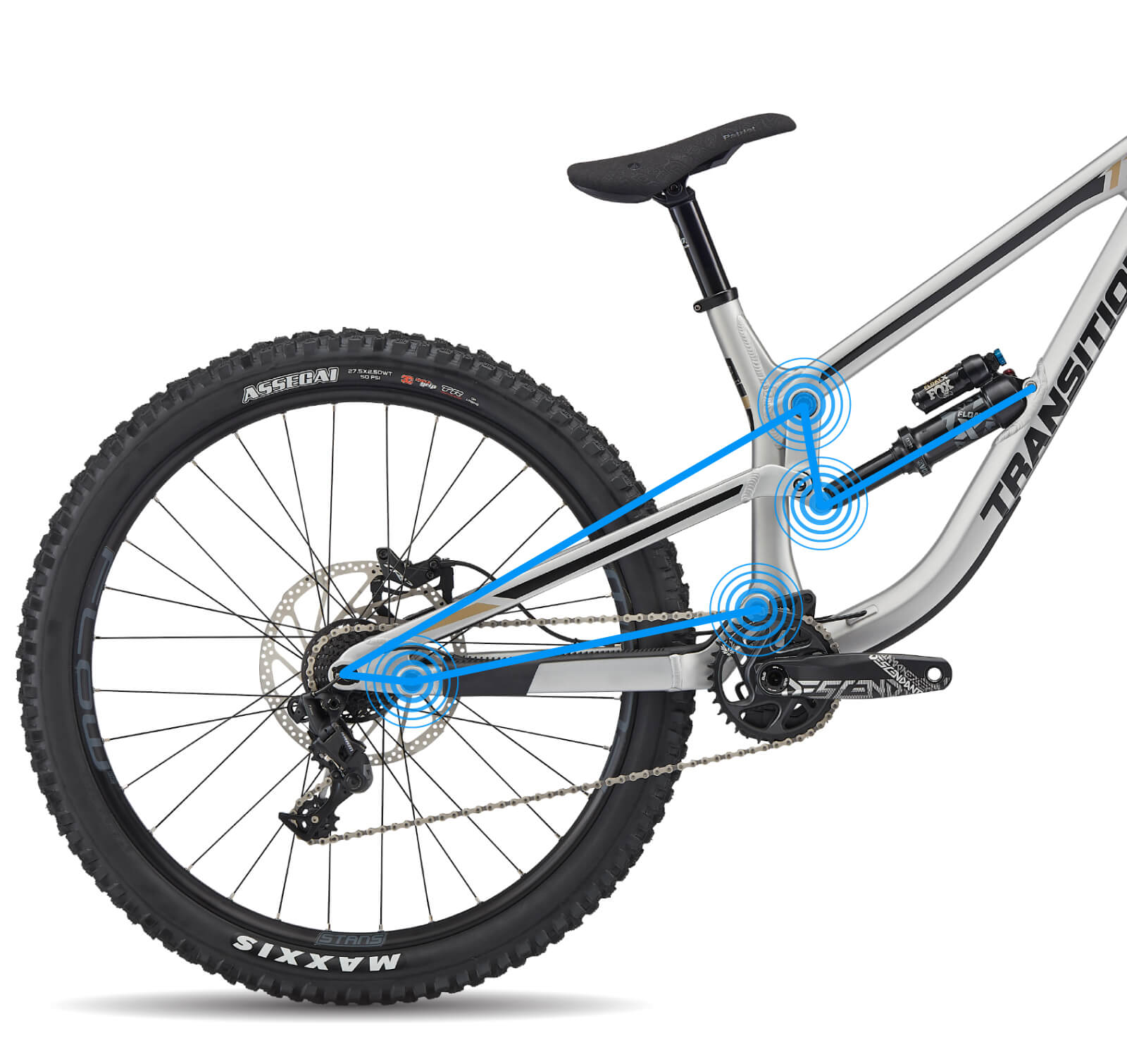

Gravity GiddyUp Suspension
Progressive by nature, low leverage and minimal pedal kick back, our Gravity GiddyUp Suspension provides fantastic performance in a simple package. We love how consistent the suspension feels and the ease of setup. The newly optimized kinematics are ideal for descending your local shuttle laps, full days in the bike park, and pushing your limits on the race track. Gravity Giddy Up Suspension is both forgiving and supportive at the same time. Whether you like huge jumps, finding side jibs or going flat out fast, the TR11 suspension has your back.
REACH ADJUST HEADSET
All TR11 framesets and complete bikes include our custom 56mm zero stack reach adjust headset. We know that fine tuning the fit on your DH bike is super important to the overall handling and feel of the bike. Our headset includes a set of neutral 0mm cups as as well as offset cups to run +/- 5mm reach. TR11 frames include a decal on the headtube to make centering the cups a no brainer. The headset includes high quality sealed cartridge bearings, alloy crown race, custom top cover as well as our signature "Make A Party" top cap.
|WHEEL SIZE:||29" Front / 27.5" Rear|
|SIZES:||SM, MD, LG, XL|
|COLORS:||Misty Green, Raw|
|FRAME BEARINGS:||2x 6903, 4x 6902, 4x 6802|
|FORK AXLE TO CROWN:||606mm (Includes Headset)|
|REAR SHOCK SIZE:||250mm x 75mm|
|SHOCK HARDWARE:||25mm x 8mm Top and Bottom|
|HEADSET (TOP):||56mm Zero Stack|
|HEADSET (BOTTOM):||56mm Zero Stack|
|BB SHELL:||83mm BSA Threaded|
|REAR BRAKE MOUNT:||200mm Post Mount, 223 Max Rotor Size|
|REAR DERAILLEUR HANGER:||Transition TR11-HG|
|REAR AXLE:||Transition Axle For UDH, 12mm x 148mm Spacing|
|MAX SEATPOST INSERTION:||115mm|
|MAX CHAINRING SIZE:||38T Single Ring|
|REAR MAX TIRE SIZE:||27.5 x 2.5|
|REAR SHOCK SAG:||19-25mm (25-33%)|
